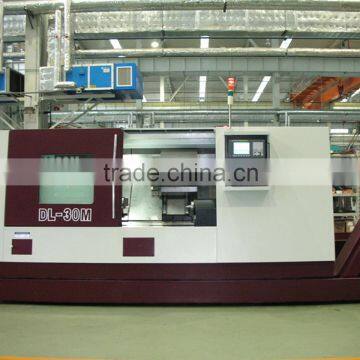

DL-25/32MHYS twin spindle cnc turning center for sale
- Dalian China
- T/T Credit Card PayPal
You May Like
-
DL32MY CE advanced twin spindle cnc turning center for sale
-
Catalogue of DL-MH Series 3-axis slant bed cnc turning center
-
DL20MH CE slant bed cnc lathe/cnc turning center
Quality Choice
-
DL25MHx1000 high class cnc turning lathe/cnc turning center
-
DL32MH Series CE 3-axis slant bed cnc turning lathe/cnc turning center
-
DL40MH Series CE heavy duty 3-axis cnc turning center for sale
Product Details
| Condition | New | Type | Other, Slant guideway | |
| Place of Origin | Liaoning, China | Brand Name | DALIAN | |
| Model Number | DL-25MHYS DL-30MHSTY cnc turning center | Voltage | 3Ph/220V 380V 400V 415V 440V 480V 50/60Hz | |
| Power(W) | 15/25.5kW | Dimension(L*W*H) | Depends | |
| Weight | 8500/12000kgs | Certification | CE; ISO9001:2008; GB/T19001:2008 | |
| Warranty | 12 months | After-sales Service Provided | Overseas service center available |
Product Description
DL-25/32MHYS twin spindle cnc turning center for sale
1.The DL-MHSTY series turning centers are designed with 45 degree one piece slant bed structure,
2.double spindles and double turrets with Y-axis, X,Y,Z three axes under control,
3.12 positions servo driven on both turrets, can accomplish bi-direction machining of the work piece.
4. each turret can work with main and sub spindle (C1, C2) to achieve synchronous 4 axes movement,
and complete complicated shape components machining.
Standard Configuation:
l 45°overall inclined bed, Double/Twin Spindle, double knives, Four-axis (X, Y, Z, C) Linkage, Double knives with a Y-axis and power turret,12-station servo Power Turre, Radial, axial momentum knife ,Double-spindle chuck:10/15″Hollow chuck, Lateral waste device;
l CE Standard and CE Certificate.
Model | DL-25MHYS twin spinlde cnc turning center | DL30MHSTY twin spinlde cnc turning center |
Max. swing over bed | 200 mm | 260mm |
Max. turning dia | 200 mm | 260mm |
Max. turning length | 650 mm | 1160mm |
Spindle |
| |
Spindle nose | A2-8 | A2-8 |
Chuck size | 10Hydraulic and Hollow | 10Hydraulic and Hollow |
Max. Spindle speed | 3500 rpm | 3000 rpm |
Dia. of spindle through hole(mm) | Φ86 mm | Φ86mm |
Main spindle motor power | 15/20.5kW | 18.5/25.5kW |
Auxiliary spindle |
| |
Spindle nose | A2-6 | A2-8 |
Chuck size | 8Hydraulic and Solid | 10Hydraulic and Solid |
Max. Spindle speed | 3500 rpm | 3000 rpm |
Dia. of spindle through hole(mm) | Φ65 mm | Φ86mm |
Main spindle motor power | 11/15 kW | 18.5/25.5kW |
Turret |
| |
Turret type/Number of stations | live tooling could be located on all 12 position | live tooling could be located on all 12 position |
External Turning Tool Shank Size | 25×25 mm | 25×25mm |
Tool Shank Size | Φ40/Φ32/Φ25/Φ20/Φ16 mm | φ40/φ32 mm/φ25/φ20/φ16 mm |
Maximum speed of power tools | 4000 rpm | 4000 rpm |
Working stroke |
| |
X axis travel | 260 mm | 215mm |
Z axis travel | 720 mm | 880mm |
Y axis travel | ±50 mm | ±60mm |
W axis travel | 750 mm (Auxiliary spindle travel) | 1160mm (Auxiliary spindle travel) |
Rapid traverse speed |
| |
Rapid traverse X axis | 12 m/min | 24m/min |
Rapid traverse Z axis | 16 m/min | 24m/min |
Rapid traverse y axis | 12 m/min | 12m/min |
Rapid traverse w axis | 16 m/min | 16m/min |
System |
| |
CNC Type | SIEMENS 840D | SIEMENS 840D |
Machine size |
| |
L×W×H | 5025×1833×2167 mm | 5520×2615×2200mm |
Net weight | 8500 kg | 12000 kg |
