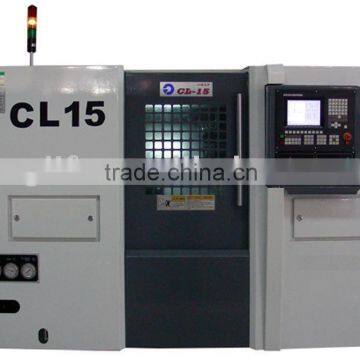

8-statioin Slant Bed CNC Lathe with CE
- 100 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, slant bed | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 440mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CL-15 CL-20A | |
| Voltage | 3Ph 220V 380V 400V 415V 440V 480V 50/60Hz | Power(W) | 5.5/11/15kW | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
- 60/45 ° inclined bed split,
- spindle Stepless Speed,
- 6/8″ hydraulic Solid chuck,
- 8-station hydraulic turret,
- Hydraulic tailstock,
- Lateral waste device,
- Full-closed protection,
- Linear guideways;
- Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability.
- Machine bed is made of heat stabilized cast-iron.
- A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining.
Item | CL15 | CL20A |
Swing over bed mm) | 400 | 440 |
Max turning length(mm) | 250/320 | 500 |
Max. turning diameter(Shafts)(mm) | 160 | 360 |
Max. turning diameter(Discs)(mm) | 200 | 300 |
Guide way type | linear | linear |
Chuck size | 6" | 8" |
Spindle nose | ISO A2-5 | ISO A2-6 |
Spindle speed (rpm) | 50~5000 | 45~4500 |
Main spindle motor power (S6)(kW) | 5.5(7.5) | 11(15) |
Spindle bore diameter (mm) | 46 | 62 |
Max bar diameter(mm) | 32 | 52 |
Positioning accuracy: | X0.016mm Z0.020mm | X0.016mm Z0.020mm |
Repeat positioning accuracy: | X0.007mm Z0.008mm | X0.007mm Z0.008mm |
X-axis travel (mm) | 120 | 165 |
Z-axis travel (mm) | 260/330 | 510 |
X-axis rapid traverse(m/min) | 15 | 15 |
Z-axis rapid traverse(m/min) | 18 | 20 |
Turret: number of stations | 8 | 8 |
Tool size (mm) | 20×20 | 25×25 |
Tailstock quill diameter(mm) | 60 | 80 |
Tailstock quill travel(mm) | 80 | 130 |
Tailstock taper(MT) | 3 | 3 |
Machine size: L×W×H(mm) | 2130/2350×1555×1880 | 2760×1500×1750 |
Net weight(kg) | 3300/3500 | 4800 |
CNC Type | FANUC 0i-T | FANUC 0i-T |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~60 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
