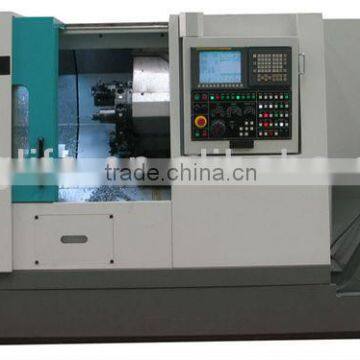

DL20M CE Certified 45 deg. Slant-bed CNC Lathe

Swing over bed

mm

Φ450

Center distance

mm

600/1000

Max. turning diameter (Shafts / Discs)

mm

Φ250/380

Guide way type

mm

linear

Chuck size

8"

Spindle nose

ISO A2-8

Spindle speed

rpm

45~4500

Main spindle motor power (S6)

kW

11(15)

Spindle bore diameter

mm

Φ76

X-axis travel

mm

265

Z-axis travel

mm

640

X-axis rapid traverse

m/min

20

Z-axis rapid traverse

m/min

20

Positioning accuracy

mm

(X)0.016 (Z) 0.025

Repeat positioning accuracy

mm

(X)0.007 (Z)0.010

Turret: number of stations

mm

12

Tool size

mm

25×25

Tailstock quill diameter

mm

Φ85

Tailstock quill travel

mm

139

Tailstock taper

MT

5

Machine size: L×W×H

mm

4140/4840×1830×1795

Net weight/Gross weight

kg

5500/6500

Foundation Sizing Block

6 sets

Tool Holders for ID Tools

4 sets

Locking Device for Tools

6 sets

Tool Sleeves for Inner Hole

Φ32

1 set

Tool Sleeves for Inner Hole

Φ25

1 set

Tool Sleeves for Inner Hole

Φ20

1 set

Tool Sleeves for Inner Hole

Φ16

1 set

Soft Jaw

1 set

For Hydraulic Chuck

Foot Switch

1 set

Chip Handcart

1 set

Technical Data

1 set

CNC Controller

0i-TD

1 set

FANUC Corp

Heat Exchanger for Electrical Cabinet

1 set

China

Lubrication System

1 set

Taiwan or its Joint-venture

Hydraulic Component

1 set

China

Main Electronic Components

1 set

Japan or Joint-venture

Spindle Chuck and Oil Cylinder

1 set

Auto Strong Taiwan

Hydraulic Turret

1 set

DGC

Auto Chip Conveyor System

1 set

Yantai

Spindle Bearing

1 set

NSK

X -axis Bearing

1 set

NSK

Z-axis Bearing

1 set

NSK

X -axis Ball-screw

1 set

DGC

Z-axis Ball-screw

1 set

DGC

X -axis Linear Guide way

1 set

DGC

Z-axis Linear Guide way

1 set

DGC

Main Drive Belt

1 set

Japan Or USA

Notched Belt

1 set

Japan Or USA
