DL20Mx600 China inclined cnc lathe machine

FOB Price

US$ 52,030 - 55,470 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Slant bed at 45°
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	450mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	DL20Mx600 inclined cnc lathe machine
Voltage	3Phx220V 380V 400V 415V 440V 480V	Power(W)	11/15kW
Dimension(LWH)	4140x1830x1795mm	Weight	5500kgs
Certification	CE; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

DL20Mx600 inclined cnc lathe machine Parameter

Machine Features

1. Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability;

2. The machine bed is made of heat stabilized cast-iron;

3. A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;

4. Various configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm;

Standard Configuration

5. 45° inclined bed split and box guide way;

6. spindle stepless speed;

7. 12-station hydraulic turret;

8. 8″ hydraulic Solid chuck and Hydraulic tailstock;

9. Lateral waste device and Closed-end protection;

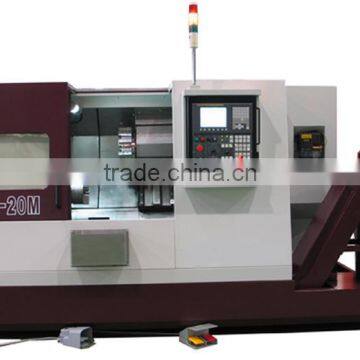

Detailed Photos

Main Technical Data

Specifications	Unit	DL20Mx600 inclined cnc lathe machine
Swing over bed	mm	Φ450
Center distance	mm	600
Max. turning diameter (Shafts / Discs)	mm	Φ250/380
Guide way type	mm	linear
Chuck size		8"
Spindle nose		ISO A2-8
Spindle speed	rpm	45~4500
Main spindle motor power (S6)	kW	11(15)
Spindle bore diameter	mm	Φ76
X-axis travel	mm	265
Z-axis travel	mm	640
X-axis rapid traverse	m/min	20
Z-axis rapid traverse	m/min	20
Positioning accuracy	mm	(X)0.016 (Z) 0.025
Repeat positioning accuracy	mm	(X)0.007 (Z)0.010
Turret: number of stations	mm	12
Tool size	mm	25×25
Tailstock quill diameter	mm	Φ85
Tailstock quill travel	mm	139
Tailstock taper	MT	5
Machine size: L×W×H	mm	4140/4840×1830×1795
Net weight/Gross weight	kg	5500/6500
