Home > Products > CNC Slant Bed Lathe > DL50 Series CE Certified CNC Slant-bed Lathe with CE for Heavy Machining

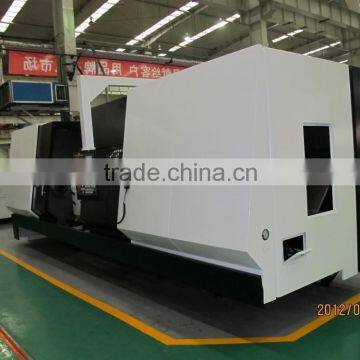

DL50 Series CE Certified CNC Slant-bed Lathe with CE for Heavy Machining

FOB Price

US$ 32,332 - 247,058 / Set

1 Set(Min. Order)

Port Dalian China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, slant bed at 70°
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	1000mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	DL50x2000/3000/4000
Voltage	220V 380V 400V 415V 440V 480V 50/60Hz 3Ph	Power(W)	22kW
Dimension(LWH)	6600x2852x3100mm	Weight	approx. 25000kgs
Certification	ISO9001:2008; GB/T19001:2008; CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

DL50 CNC Slant-bed Lathe Technical Specifications

Machine Features

1. Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability;

2. The machine bed is made of heat stabilized cast-iron;

3. A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;

4. Various configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm;

Standard Configuration

5. 70° inclined bed split and box guide way;

6. spindle stepless speed;

7. 12-station hydraulic turret;

8. 15″ hydraulic Solid chuck and Hydraulic tailstock;

9. Lateral waste device and Closed-end protection;

Detailed Photos

Specifications	Unit	Parameter
Swing over bed	mm	Φ1000
Center distance	mm	2000/3000/4000
Max. turning diameter(Shafts/ Discs)	mm	Φ800/1000
Guide way type	mm	box-type
Chuck size	mm	15"
Spindle nose		ISO A2-15
Spindle speed	rpm	50~1200
Main spindle motor power(S6)	kW	22(30)
Spindle bore diameter	mm	Φ100
X-axis travel	mm	500
Z-axis travel	mm	4060
X-axis rapid traverse	m/min	12
Z-axis rapid traverse	m/min	12
Positioning accuracy	mm	(X)0.019 (Z)0.040
Repeat positioning accuracy	mm	(X)0.0012 (Z)0.020
Turret: number of stations	mm	12
Tool size	mm	32×25
Tailstock quill diameter	mm	Φ180
Tailstock quill travel	mm	180
Tailstock taper	MT	6
Machine size: L×W×H	mm
Net weight	T

Free Standard Access

Item	Specifications	Quantities	Remark
Foundation Sizing Block		14 sets
Tool Holders for ID Tools		4 sets
Reducing Sleeve	Φ25	1 set
Reducing Sleeve	Φ32	1 set
Reducing Sleeve	Φ40	1 set
Soft Jaw		1 set
Foot Switch		1 set
Chip Handcart		1 set
Technical Data		1set
CNC Controller (with Servo Spindle)	0i-TD	1 set	FANUC
Heat Exchanger for Electrical Cabinet		1 set	China
Lubrication System		1 set	Taiwan or its Joint-venture
Hydraulic Component		1 set	China
Main Electronic Components		1 set	Japan or China
Spindle Chuck and Oil Cylinder	Φ530 Solid	1 set	Beichuan
Hydraulic Turret	12 Station	1 set	Italy BSV-N320
Auto Chip Conveyor System	Chain-plate type	1 set	Yantai
Spindle Bearing		1 set	FAG Germany
X/Z-axis Bearing		1 set/each	NSK
X -axis Ball-screw	55×10	1 set	DGC
Z-axis Ball-screw	70×20	1 set	DGC
Main Drive Belt		1 set	Japan Or USA
Notched Belt		1 set	Japan Or USA

Machining Sample

Factory Overview

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

FAQ

Payment Term:

30% down payment, 70% by T/T before shipment;
100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

1 Set;
≥2 sets, there will be much discounts.

Warranty:

Normally, 12 months for parts as of delivery of the machines;

Shipment:

For machine itself, by sea or train(inland countries).
For documents, by international express. eg DHL, TNT or EMS.

Packaging & Shipping
