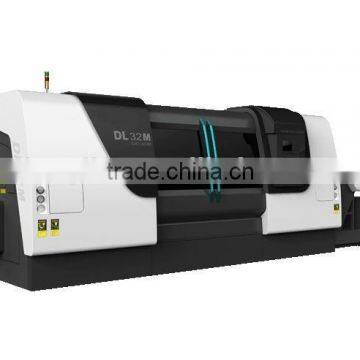

DL32M Slant Bed CNC Lathe with CE High-class for Heavy Machining
- Dalian China
- T/T Credit Card PayPal
You May Like
-
DL40 High-class Slant Bed CNC Lathe with CE for Heavy Machining
-
DL50 Series CE Certified CNC Slant-bed Lathe with CE for Heavy Machining
-
DL50x3000 CE Certified slant bed cnc lathe machine
-
DL25M high class 12 station slant bed cnc lathe
-
DL50x2000 CE Heavy Machining Slant Bed CNC Lathe
-
DL32Mx2000 CE slant bed cnc turning lathe machine for sale
Product Details
| Condition | New | Type | Other, slant bed at 45 deg. | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 680mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | DL32Mx1500/2000 | |
| Voltage | 220V 380V 400V 415V 440V 480V 50/60Hz 3Ph | Power(W) | 22kW | |
| Dimension(L*W*H) | 6240x2040x2240mm | Weight | 12000kgs | |
| Certification | ISO9001:2008; GB/T19001:2008; CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
DL32M CNC Slant-bed Lathe Technical Specifications
Standard Configuration
45°overall inclined bed,spindle Stepless Speed,15″hydraulic Solid chuck,12-station hydraulic turret,Hydraulic tailstock,Lateral waste device,Closed-end protection,box-type;
CE;
Specifications | Unit | Parameter |
Swing over bed | mm | Φ680 |
Center distance | mm | 1500 |
Max. turning diameter(Shafts/ Discs) | mm | Φ400/630 |
Guide way type | mm | box-type |
Chuck size | mm | 15" |
Spindle nose |
| ISO A2-11 |
Spindle speed | rpm | 20~2000 |
Main spindle motor power(S6) | kW | 22(30) |
Spindle bore diameter | mm | Φ100 |
X-axis travel | mm | 375 |
Z-axis travel | mm | 1030 |
X-axis rapid traverse | m/min | 13 |
Z-axis rapid traverse | m/min | 13 |
Positioning accuracy | mm | (X)0.012(Z)0.025/0.03/0.04/0.05 |
Repeat positioning accuracy | mm | (X)0.007(Z)0.012/0.013/0.016/0.02 |
Turret: number of stations | mm | 12 |
Tool size | mm | 32×25 |
Tailstock quill diameter | mm | Φ160 |
Tailstock quill travel | mm | 180 |
Tailstock taper | MT | 5 |
Machine size: L×W×H | mm | 6240×2040×2240 |
Net weight | kg | 12000 |
Standard accessories
Item | Specifications | Quantities | Remark |
Foundation Sizing Block |
| 6/8 sets | 1000/1500 |
Tool Holders for ID Tools |
| 2 sets |
|
Right angle coupling sparge pipe |
| 12 sets |
|
Locking Device for Tools |
| 8 set |
|
Tool Sleeves for Inner Hole | Φ40 | 1 set |
|
Tool Sleeves for Inner Hole | Φ32 | 1 set |
|
Tool Sleeves for Inner Hole | Φ25 | 1 set |
|
Tool Sleeves for Inner Hole | Φ20 | 1 set |
|
Soft Jaw |
| 1 set |
|
Live Center | DL32-69701 | 1 | Used with Tailstock |
Live Center | DL32-69702 | 1 |
|
Screw Nut | DL32-69703 | 2 |
|
Foot Switch |
| 1 set |
|
Chip Handcart |
| 1 set |
|
Technical Data |
| 1 set |
|
CNC Controller | 0i-TD | 1 | FANUC Corp. |
Heat Exchanger for Electrical Cabinet |
| 1 | China |
Lubrication System |
| 1 | Taiwan or its Joint-venture |
Hydraulic Component |
| 1 | China |
Main Electronic Components |
| 1 | Japan or Joint-venture |
Spindle Chuck and Oil Cylinder |
| 1 | Auto Strong Taiwan |
Hydraulic Turret |
| 1 | DGC |
Auto Chip Conveyor System |
| 1 | Yantai |
Spindle Bearing |
| 1 | NSK |
X/Z-axis Bearing |
| 1 Set/Each | NSK |
X/Z-axis Ball-screw |
| 1 | DGC |
Main Drive Belt |
| 1 | Japan Or USA |
Notched Belt |
| 1 | Japan Or USA |
