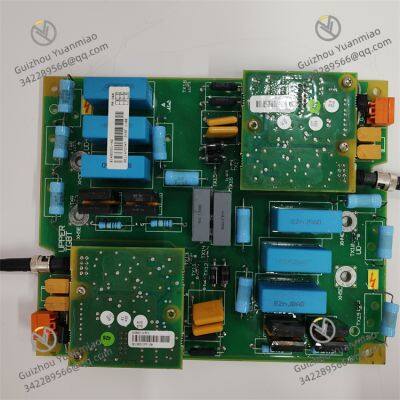

ABB DYSF118B 61430001-XG Communication Interface Module

Input Channels: 16 digital inputs compatible with 24V DC signals (Logic "1": 11-30V DC, Logic "0": 0-5V DC), with ~4.7kΩ input impedance, built-in overvoltage protection (≤35V DC), and adjustable hardware filtering (0.2-32ms) to reduce signal jitter.

Output Channels: 16 digital outputs with high-performance transistor (NPN/PNP) outputs, supporting typical load capacity of 0.5A/channel (resistive load), short-circuit protection, surge suppression, and overload diagnosis. Response time ≤1ms meets high-speed switching control requirements.

Bus Compatibility: Standard PROFINET interface (supports 100Mbps transmission rate), optional communication protocols like EtherNet/IP and Modbus RTU (requires adapters), supporting master-slave mode and redundant network configuration.

Diagnostic Functions: Real-time monitoring of channel faults (short circuit, open circuit, overload), status display via module LED indicators (POWER, RUN, CHANNEL), and fault alarms transmitted to the master controller via the bus.

Protection Design: Wide operating temperature range (-20°C to +60°C), vibration resistance (5-500Hz, 10g), EMC compliance with EN 61000-6-2/6-4 standards, suitable for harsh industrial environments.

Supports programming tools like ABB Control Builder and PLCopen, allowing software configuration of I/O addresses, filtering time, and output response modes, compatible with mainstream industrial automation programming protocols (e.g., IEC 61131-3).

Environmental Requirements: Compatible with ABB S800 I/O racks or 35mm standard DIN rails. Reserve ≥10mm heat dissipation spacing, keep away from strong electromagnetic sources like frequency converters and transformers, working environment humidity ≤95% (no condensation).

Installation Steps:

Power Supply Wiring: Use 1.5mm2 shielded cables to connect 24V DC power (+24V/GND), ensure correct polarity. The power circuit is recommended to have a series 2A fuse.

Input Signal Wiring: Connect signal wires of proximity switches, photoelectric sensors, etc., to input terminals. The common terminal (COM) connects to 24V (PNP) or GND (NPN) based on the sensor type. Use shielded twisted-pair cables if the length exceeds 100m.

Output Signal Wiring: Connect actuators like solenoid valves and relay coils to output terminals. Transistor outputs require parallel freewheeling diodes with reverse breakdown voltage ≥50V (cathode connected to +24V) to prevent surge damage to the module.

Grounding: The module grounding terminal must connect to the system grounding bus (ground resistance ≤10Ω). The shielded layer of signal cables should be grounded at a single point to avoid interference from multiple grounding.

Hardware Check: Ensure the module is installed firmly, power wiring has no short circuits (measure power terminal resistance ≥100kΩ with a multimeter), and input/output terminals are securely wired.

Software Configuration: Add the module model (DYSF118B) in ABB Control Builder, assign PROFINET device addresses, configure input filtering time (default 4ms), and output response modes (pulse/level triggering).

Function Test: Send input signals via the host computer, observe whether the module CHANNEL LED lights up. Output channels can be tested by measuring voltage with a multimeter or connecting loads.

POWER: Steady on → normal power supply; off → check power supply, fuse, or cable connections.

RUN: Flashing (1Hz) → module operating normally; off → PROFINET communication fault (check IP address, network cable, or switch status).

CHANNEL LED: Input channel lit → signal valid; output channel lit → output signal present (judge abnormalities by combining load actuation).

Common Faults:

Smart Manufacturing Production Lines: Monitor workpiece presence signals (input), control robotic arm fixtures and conveyor motor start/stop (output) to realize automated assembly processes.

Robot System Integration: Connect robot controllers with safety light curtains and travel switches, control tool quick-change devices and pneumatic valve group actions to ensure production line safety.

Process Automation Control: Monitor valve switch status (input) in chemical and power systems, control alarm devices and pump start/stop (output), and implement logical interlocking with PLC.

Intelligent Warehouse Logistics: Interface with sensors (e.g., cargo position detection, photoelectric switches), control shuttle vehicles and sorter solenoid valve actions to optimize material handling efficiency.

Compatibility: The module must match ABB controller firmware versions (e.g., AC 800M firmware ≥4.0.0). PROFINET communication requires ABB PPD series adapters (e.g., PPD123).

Cable Selection: Use 0.5-1.0mm2 shielded twisted-pair cables for input/output signals. PROFINET cables must meet CAT.5e standards, with a maximum communication distance of 100m (non-redundant).

Maintenance Tips: Regularly check terminal screw tightness. Use control cabinet dust filters in high-dust environments. Avoid long-term overload of output channels (load current ≤0.4A to extend service life).

Safety Specifications: Cut off power during installation and debugging. Do not plug/unplug terminals when the module is powered to avoid electrostatic damage to electronic components.
