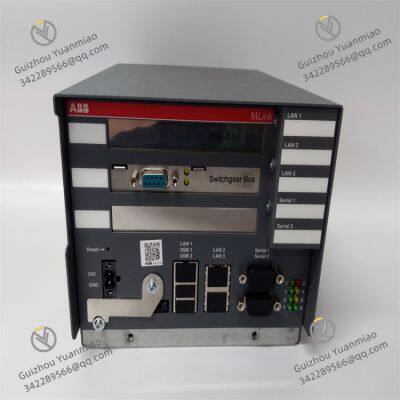

ABB 1TGE120021R0010 Motor Control Center Interface

Supports multiple digital inputs (specific channel count refers to model details, typical configurations include 16 or 32 channels), enabling real-time reading of dry or wet contact signals.

Input signals are compatible with the DC 24V standard, with a logic "1" (on) threshold of 16-30V DC and a logic "0" (off) threshold of 0-5V DC.

Input channels and internal circuits adopt optoelectronic isolation with an isolation voltage ≥500V AC, effectively resisting external Electromagnetic Interference (EMI) and surge impacts.

Input channels have built-in surge protection circuits, capable of withstanding transient overvoltage (such as induced lightning), enhancing module stability in harsh environments.

Each input channel is equipped with an independent LED indicator to display signal on/off status in real time (lit light indicates input "1", off light indicates "0" or circuit failure).

Supports module-level fault self-checking (such as power anomalies and channel short circuits), and feeds back diagnostic information to the main control system via the bus for quick fault troubleshooting.

Rail Installation: Supports quick installation on 35mm DIN rails, can be fixed horizontally or vertically, with 10mm heat dissipation space reserved between adjacent modules.

Screw Fixing: Optionally fixed to the backplane with screws; wear an anti-static wristband during installation to avoid electrostatic damage to components.

Power Supply Wiring: Use 1.5mm2 shielded cables to connect to the 24V DC power supply, with strict positive/negative polarity correspondence; a series 1A fuse is recommended.

Digital Input Wiring:

Bus Communication Wiring: Connect to the main control module via a dedicated bus cable (such as a Profibus cable), and configure the terminal resistor as per the protocol (such as a 120Ω Profibus terminal resistor).

POWER (Green): Steady on → normal power supply; off → check power wiring, fuse, or adapter.

RUN (Green): Steady on → normal module operation; flashing → initialization or communication anomaly (check bus connection and address configuration).

Channel Indicator (DI): On → corresponding channel input is "1"; off → input is "0" or circuit open (use a multimeter to test cable continuity).

No input response: Measure whether the input signal voltage is within the range of 16-30V DC, check if the common terminal (COM) is correctly wired, and confirm no open circuit in the cable.

Communication interruption: Confirm that the bus address and baud rate are consistent with the main control system, replace the bus cable or adapter, and check if the interface chip is damaged.

Collects the position signals of circuit breakers and disconnectors in substation automation systems, transmitting them to the monitoring system for status monitoring.

Receives start/stop and emergency stop signals from the operation panel in local control of medium-high voltage frequency converters.

Collects limit switch signals in metallurgical production lines to achieve position interlocking control of rolling mills and conveyors.

Reads the statuses of temperature and pressure switches in chemical reactors as input signals for safety interlocking.

Collects the opening/closing statuses of train doors in train door control systems, transmitting them to the main control system to realize door locking logic.

Cooperates with PLC to collect "door in place" signals in platform screen door control to ensure safe operation.
