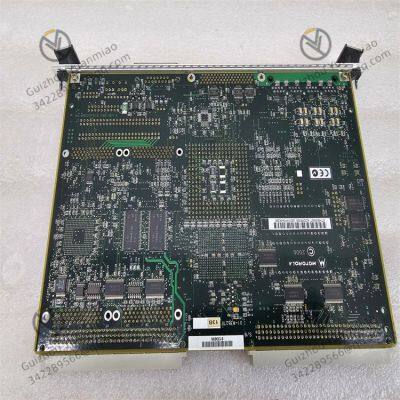

MOTOROLA MVME172PA-652SE VME Embedded controller module

Processor: Usually, the Motorola PowerPC 604e microprocessor is adopted, with a main frequency of 1.3GHz. It has the capabilities of 32-bit integer and floating-point operations and can handle complex computing tasks.

Memory and storage: Generally equipped with 512MB SDRAM, it can meet the data storage and processing requirements during operation, and there is also 256MB flash memory for storing important data such as firmware.

Communication interface: It is equipped with a rich set of communication interfaces, including VMEbus, RS-232, RS-485, Ethernet, etc., facilitating data exchange and communication with other devices or systems. It can be connected to various peripheral devices such as sensors and actuators.

Dimensions and weight: The external dimensions are the standard VME 6U size, approximately 233mm×167mm, and the weight is approximately 1.5kg.

Working environment: The operating temperature range is generally -20 °C to + 85°C, the storage temperature range is -40 °C to + 85°C, and the humidity is 5% to 95% (non-condensing). It can adapt to relatively harsh industrial environments.

Power supply requirements: Usually supports + 5V DC or + 12V DC power input, with a power consumption of less than 20W, featuring low power consumption.

Operating system support: Supports multiple operating systems, such as VxWorks, Linux, Solaris, etc. Users can choose the appropriate operating system based on their specific application requirements.

Performance features: It has high-performance computing capabilities and is suitable for complex control and data processing tasks. It adopts a modular design, which is easy to integrate into the existing system and can add functions through expansion slots. Meanwhile, the module adopts industrial-grade components, featuring strong anti-interference ability and high reliability.

Application field:

Industrial automation production line control: In the automated production lines of automotive manufacturing plants, the MVME172PA-652SE can be used as a core control module. By connecting various sensors and actuators, it collects real-time status data of each workstation on the production line, such as the position of components and equipment operation parameters, and precisely controls the movement of the mechanical arm and the speed of the conveyor belt according to the preset program, ensuring the precise assembly of automotive parts, improving production efficiency and product quality, and reducing the defect rate of the production line by 10% to 15%.

Aerospace flight control: In the flight control systems of unmanned aerial vehicles or small aircraft, this module can play a significant role. It receives attitude data from sensors such as gyroscopes and accelerometers, quickly calculates and processes it, and then sends control instructions to actuators such as servos to achieve precise control of the aircraft's attitude, ensuring the stability and safety of the flight. The flight attitude control accuracy can be improved to within 0.5°.

Imaging processing of medical imaging equipment: In CT scanners, the MVME172PA-652SE can be used to process the large amount of raw data collected by the detector. It reconstructs these data into high-quality tomographic images through high-speed computing, and works in coordination with other control systems of the equipment to control the movement of the scanning bed and the adjustment of scanning parameters, helping doctors diagnose the condition more accurately and improving the clarity and accuracy of the imaging.

Radar signal processing and target recognition: In military radar systems, this module can perform real-time processing of the echo signals received by the radar. It can quickly analyze the signal characteristics, identify the distance, orientation, speed and other information of the target, filter out the interfering signals at the same time, improve the detection accuracy and anti-interference ability of the radar, and increase the target recognition accuracy rate to more than 90%.

Traffic monitoring and flow management: In intelligent transportation systems, the MVME172PA-652SE can be used for traffic signal control and road condition monitoring. It collects traffic flow data in real time by connecting traffic cameras, vehicle detectors and other devices, and dynamically adjusts the duration of traffic lights according to the changes in traffic flow to optimize the traffic flow. Meanwhile, abnormal road conditions are monitored and warned to improve road traffic efficiency and safety.
