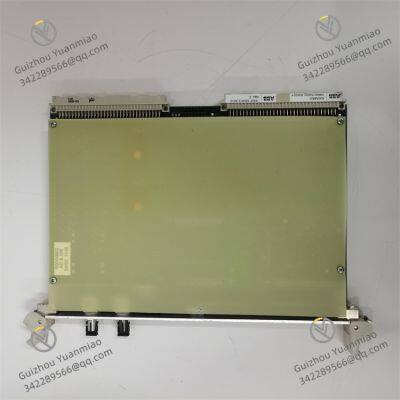

ABB 500AIM02 1MRB150022 R0002Y 1HDF 930412 X010 Controller Module

Series Affiliation: Analog input module of ABB AC 500 series PLC, used for collecting analog signals in industrial automation systems and converting them into digital quantities for controller processing.

Core Functions: Supports high-precision sampling of multi-channel analog signals (such as voltage, current, and temperature signals), suitable for scenarios like process control, power monitoring, and mechanical automation.

Number of Channels: 8-channel analog input (supporting differential or single-ended input).

Signal Types:

Accuracy: 16-bit ADC sampling, resolution approximately 0.015% (full scale).

Power Supply: 24VDC (±20%), power consumption ≤5W.

Isolation: Electrical isolation between channels (isolation voltage 500V AC/1min), strong anti-interference capability.

Filtering and Sampling Frequency: Supports software-adjustable filtering (0.1-100Hz), sampling period ≤2ms per channel.

Mounting Method: 35mm DIN rail mounting, supports vertical/horizontal installation.

Operating Temperature: -25°C to +60°C, humidity 5% to 95% (non-condensing).

Protection Level: IP20, compliant with EN 61131-2 industrial standards.

Temperature and pressure signal acquisition for chemical reactors;

Data access for flow and level sensors in water treatment systems.

Current and voltage monitoring in substations;

Power parameter acquisition for photovoltaic inverters.

Temperature monitoring of machine tool spindles;

Real-time pressure detection of hydraulic systems.

Adopts detachable terminal blocks (model 1SFA610001R1001), supporting screw or spring terminal connections.

Typical Wiring Examples:

Communicates with CPU modules via the AC 500 backplane bus, supporting real-time data transmission (cycle ≤10ms).

Uses ABB Control Builder AC 500 for configuration, enabling settings for:

Status indicators:

Reserve ≥10mm heat dissipation space from adjacent modules, avoiding strong electromagnetic interference sources (such as frequency converters, transformers).

Signal cables must use shielded cables, with a spacing ≥30cm from power cables.

Regularly check for loose terminal block connections (recommended every 6 months);

Power off when replacing modules, supports hot-swapping (subject to AC 500 CPU permission).

High-precision requirements: For higher resolution (e.g., 18-bit), select the 500AIM03 module;

Explosion-proof scenarios: Hazardous areas (such as Zone 1) require matching with ABB explosion-proof interface units (model EXi810);

Redundancy design: For critical processes, it is recommended to configure dual-module hot standby (requires CPU support for redundancy functions).
