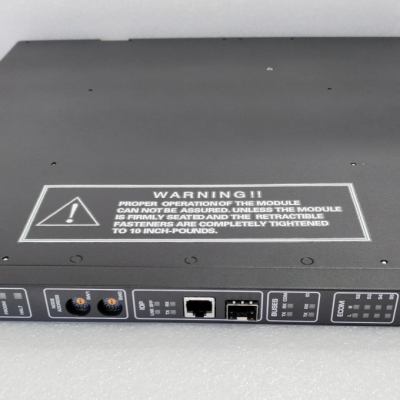

Triconex 3009 processor module

Triconex 3009 Product Data and Technical Specifications:

• Power Supply Voltage: Typically 24VDC.

• Power Consumption: Varies according to specific configurations and usage, generally ranging from several watts to tens of watts.

• Input Channels: Available in different configurations, such as 8-channel or 16-channel input channels.

• Input Signal Types: Capable of receiving various input signals, such as 4-20mA current signals, 0-10V voltage signals, and switch signals.

• Output Channels: Also available in multiple configurations, such as 8-channel or 16-channel outputs.

• Output Signal Types: Common types include 4-20mA current outputs and relay outputs, used to control external devices.

• Communication Interfaces: Supports multiple communication protocols, such as HART, Profibus-DP, and Modbus, for data exchange with other devices.

• Communication Speed: Varies by protocol; for example, Profibus-DP speeds range from 9.6Kbps to 12Mbps.

• Accuracy: High precision for analog input/output, such as ±0.1% or better.

• Response Time: Typically ranges from tens to hundreds of milliseconds, enabling fast response to input signal changes for processing and output.

• Anti-Interference Capability: Features excellent electromagnetic compatibility (EMC) performance, stable operation in complex industrial electromagnetic environments, and compliance with relevant industrial standards for anti-interference levels.

Product weight ；2.85kg

I. Product Introduction

Triconex, a brand under Schneider Electric, specializes in industrial automation and safety control systems, such as the Tricon triplex redundant control system.

The 3009 is an I/O card (input/output module) in this series, primarily used to connect field sensors, actuators, and other devices to achieve signal acquisition, processing, and control output.

II. Materials

The material design of industrial-grade I/O cards must meet requirements for high reliability, anti-interference, and resistance to harsh environments. The core materials of Triconex 3009 typically include:

1. Circuit Board (PCB)

Made of multi-layer epoxy glass fiber board (FR-4 substrate), offering excellent electrical insulation and mechanical strength.

Surface coated with solder resist (green oil) and gold immersion/gold plating processes to enhance solder joint reliability and corrosion resistance.

2. Electronic Components

Chips: Industrial-grade or military-grade integrated circuits (e.g., microprocessors, analog-to-digital converters ADC, digital-to-analog converters DAC, etc.) are used to ensure stability in high-temperature, high-humidity environments.

Capacitors/Resistors: Mostly surface-mounted devices (SMD), which are small in size and highly vibration-resistant. Some critical components may use solid-state capacitors or metal film resistors to extend service life.

Relays/Isolators: Output modules may include high-reliability relays (e.g., magnetic latching relays) or optoelectronic isolators for electrical isolation and load control.

3. Housing and Interfaces

Housing: Typically a metal rail mounting bracket (e.g., aluminum alloy or stainless steel) to provide mechanical protection and heat dissipation.

Interface Terminals: Made of nickel-plated/tin-plated copper terminals or corrosion-resistant alloys to ensure stable signal contact. Some models may support quick-plug connectors.

4. Protection Design

The circuit board may be treated with potting technology or coating technology (e.g., three-proof paint) for moisture, dust, and salt spray resistance, suitable for harsh environments such as chemical, petroleum, and metallurgical industries.

III. Main Applications

As a key component of industrial automation systems, Triconex 3009 is mainly used in the following scenarios:

1. Industrial Process Control

Connects temperature, pressure, and flow sensors (input signals: 4-20mA/0-10V) to collect field data and transmit it to the control system.

Controls actuators such as valves, motors, and frequency converters (output signals: 4-20mA/relay contacts) to achieve closed-loop control.

2. Safety Instrumentation Systems (SIS)

In industries such as petrochemicals and power, it serves as an I/O module for safety control systems, supporting redundant architectures (e.g., triplex redundancy) to ensure reliable execution of safety actions (such as emergency shutdown) in the event of faults.

3. Complex Industrial Environments

Suitable for harsh scenarios with high electromagnetic interference (EMI), high vibration, extreme temperatures (e.g., factory production lines, offshore platforms, mines), meeting industrial standards (e.g., IEC 61508, ISA 84.00.01) for reliability.

4. System Integration and Communication

Communicates with PLCs, DCSs, or supervisory control systems via protocols such as Profibus-DP, Modbus, and HART to enable data interaction and remote monitoring.

IV. Core Advantages

High Reliability: Materials and design meet industrial-grade durability standards, supporting redundant configurations to reduce single-point failure risks.

High Precision: Analog input/output precision can reach ±0.1% or higher, suitable for precision control scenarios.

Flexibility: Multiple channel configurations (e.g., 8-channel/16-channel input/output) and signal types adapt to different sensors and actuators.

Notes

Specific material details may vary slightly depending on product version (e.g., standard type, explosion-proof type) or manufacturing batch. It is recommended to refer to the official manual or consult the supplier for detailed specifications.

During installation, follow anti-interference guidelines (e.g., separate routing of signal cables and power cables) to ensure optimal performance.
