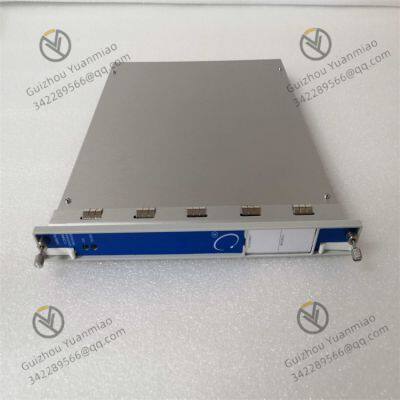

Bently Nevada 3500/92 communication gateway module

Bently Nevada 3500/92 communication gateway module

I. Core Functions

The 3500/92 communication gateway module is a key component of the Bently Nevada 3500 mechanical monitoring

system. It is mainly used to achieve data interaction between the 3500 framework and external systems, supports

multiple industrial communication protocols, and solves the interconnection and intercommunication problems

between the monitoring system and upper computers, DCS, PLC and other devices.

Its core functions include:

Protocol Conversion: Convert the internal data format of the 3500 system to standard industrial protocols (such as

Modbus, EtherNet/IP, OPC UA, etc.) to achieve cross-system data sharing.

Real-time data transmission: Collect real-time data from each monitoring module (such as vibration, displacement,

rotational speed, etc.) within the 3500 framework and transmit it to an external monitoring system for analysis and

alarm.

Redundancy and reliability design: Supports dual-module hot standby redundancy to ensure continuous system

operation when communication is interrupted, suitable for critical equipment monitoring scenarios.

Ii. Communication Protocol and Interface Characteristics

Protocol type and transmission rate

Modbus RTU/ASCII: Up to 115.2kbps

Modbus TCP: 10/100Mbps

EtherNet/IP: 10/100Mbps

OPC UA: Adaptive Bandwidth

Profinet: 10/100Mbps

Physical interface

Ethernet interface: 2 RJ45 ports (supporting redundant network connection), supporting IEEE 802.3 standard.

Serial port interface: 2 RS-232/485 ports (configurable as Modbus RTU master/slave mode).

Status indicator light: The front panel LED displays network connection, data transmission, module operation status

and fault alarm.

Iii. System Integration and Data Mapping

Interaction with the 3500 framework

Read the data of each module in real time through the 3500 backplane bus (such as the 19340 communication bus),

and support access to the following information:

Monitoring parameters: real-time data such as vibration amplitude, displacement, rotational speed value, and

temperature.

Equipment status: Alarm/hazard output, module health status, sensor failure information.

Configuration parameters: alarm thresholds for each channel, filtering Settings, unit calibration values, etc.

Data mapping and configuration tools

Communication parameter Settings are carried out using Bentley's dedicated Software 3500 Configuration Software or

 Asset Framework, supporting:

Custom register mapping: Map 3500 channels of data to Modbus registers or the OPC address space.

Data refresh rate configuration: Set the data transmission cycle as required (such as 100ms to 10s).

Alarm trigger strategy: Configure an active upload mechanism for abnormal data (such as prioritizing the transmission

 of sudden values).

Iv. Redundant Design and Fault Tolerance

Hardware redundancy scheme

Dual-module hot standby: Install two 3500/92 modules in the 3500 framework and achieve primary and standby

switching through redundant protocols (such as EtherNet/IP ring network), with a switching time of less than 50ms to

ensure uninterrupted communication.

Power and network redundancy: Supports dual power input and network link redundancy to prevent communication

interruption caused by single power supply or network cable failure.

Fault diagnosis function

Built-in self-diagnostic program, real-time monitoring:

Network connection status (packet loss rate, latency).

Protocol parsing errors (such as failed Modbus verification, OPC session disconnection).

Data transmission anomaly (continuous timeout, data verification error).

When a fault occurs, the LED light and the 3500 system alarm output are used, and the event log is recorded at the

same time for easy traceability.

V. Application Scenarios

Condition monitoring of steam turbine units in power plants

In the thermal power plant, the 3500/92 module transmits the vibration, displacement and rotational speed data of

the steam turbine to the DCS system via Modbus TCP. Operators can monitor the equipment status in real time in the

central control room. When the vibration value exceeds the limit, the DCS system triggers an alarm and records the

historical trend to assist in equipment maintenance.

Remote monitoring of petrochemical compressor clusters

A certain refining and chemical enterprise connected the 3500 monitoring system of multiple compressors to the

plant-level SCADA system through the 3500/92 module, utilized the OPC UA protocol to achieve centralized data

management across network segments, and combined with the big data analysis platform to predict equipment

failures, reducing unplanned downtime by 30%.

Interconnection of metallurgical rolling mill equipment

In the main drive system of the rolling mill, the 3500/92 module communicates with the Rockwell PLC via EtherNet/IP.

The PLC dynamically adjusts the roll pressure based on the bearing temperature and shaft displacement data

 transmitted by 3500 to avoid steel plate quality defects caused by equipment abnormalities.

Vi. Key Technical Parameters

Working voltage: 24V DC (±10%), power consumption ≤10W.

Operating temperature: 0℃ to 55℃ (Fanless design, suitable for industrial environments).

Communication capacity: Supports simultaneous connection with 8 external devices and can process ≥ 1,000 data

points per second.

Selection precautions

Select the corresponding version (such as Modbus version, EtherNet/IP version) according to the external system

protocol.

Evaluate the data transmission volume: If a large amount of vibration waveform data needs to be transmitted, it is

recommended to choose OPC UA or high-speed Ethernet protocol.

Considering redundancy requirements: It is recommended to configure dual-module redundancy for key equipment,

while single-module operation is feasible for ordinary scenarios.
