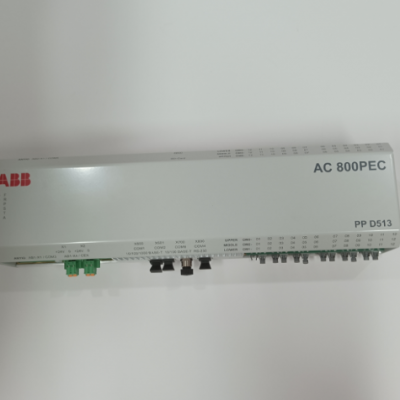

ABB PPD513A-23-111615 Magnetic Excitation Controller

Product Overview

The ABB PPD513A-23-111615 is a high-performance magnetic excitation controller designed for industrial applications requiring precise control of electromagnetic systems. It integrates advanced control algorithms with robust hardware to ensure stable and efficient operation in demanding environments.

Technical Parameters

Parameter Specification

Operating Voltage 24 V DC ±10%

Power Consumption ≤20 W

Output Current 0-10 A (adjustable)

Output Voltage 0-250 V DC (adjustable)

Control Method Digital PID control with auto-tuning

Communication Interfaces

• 3-channel isolated MODBUS RTU

• 2x Ethernet (PROFINET)

• 2x Analog inputs (0-10V/4-20mA)

• 2x Analog outputs (0-10V/4-20mA)

• 4x Digital inputs

• 2x Digital outputs

Protection Features Overcurrent, overvoltage, short-circuit, overheat protection

Operating Temperature -20°C to +55°C

Storage Temperature -40°C to +70°C

Humidity 95% RH (non-condensing)

Dimensions 40mm (W) x 110mm (H) x 75mm (D)

Weight ~0.5 kg

Mounting DIN rail mounting (35mm)

Certifications CE, UL, RoHS

Key Features

Precision Control:

Utilizes advanced PID algorithms for accurate regulation of excitation current.

Auto-tuning function optimizes control parameters for different loads.

Flexible Communication:

Seamless integration with industrial networks via MODBUS RTU and PROFINET.

Supports configuration and monitoring via ABB's control systems (e.g., AC 800PEC).

Safety & Reliability:

Comprehensive protection mechanisms prevent damage from electrical faults.

High-quality components ensure long service life in harsh environments.

Modular Design:

Compact form factor for space-constrained installations.

Easy DIN rail mounting and wiring access.

Typical Applications

Electromagnetic brakes/clutches in industrial machinery.

Magnetic separators for material processing.

DC motors requiring precise speed and torque control.

Power generation systems for voltage regulation.

Automation systems requiring controlled magnetic fields.

Configuration & Operation

Local Interface: Built-in LCD display and navigation buttons for manual setup.

Remote Configuration: Via ABB's Control Builder software or third-party SCADA systems.

Parameter Settings:

Output current/voltage limits.

Ramp-up/ramp-down times.

PID control parameters.

Communication protocol and address.

Order Information

Product Code: PPD513A-23-111615

Accessories:

Power supply cables.

Communication adapters.

Mounting brackets.
