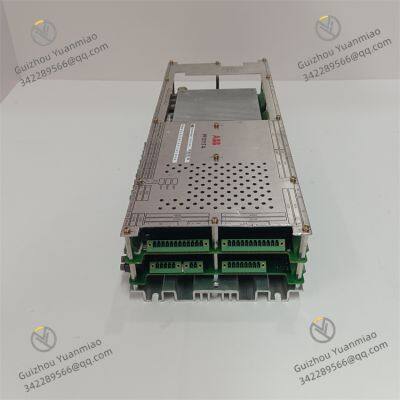

ABB PPD117A3011 3BHE030410R3011 Excitation Controller

ABB PPD117A3011 3BHE030410R3011 is an excitation controller applied in automation and power control systems, primarily used to control and regulate the excitation systems of generators or motors. It is widely used in power systems, generator sets, industrial process control and other fields. By adjusting the excitation current, it controls the output voltage of the generator to ensure the stable operation of the power system. It can maintain the stable operation of generators in power plants, ensure the stability and efficiency of power supply in industrial applications, and help regulate grid voltage to avoid equipment damage caused by voltage fluctuations.

Main Features

• Precise Voltage Regulation: Through precise adjustment of the excitation current, it achieves accurate control of the generator's output voltage, helping to reduce power system fluctuations and protect equipment from voltage fluctuations.

• Real-Time Feedback Control: It can monitor the generator's operating status in real time and automatically adjust the excitation current based on feedback signals to keep the voltage within the set range.

• High Reliability: Designed to meet high-reliability requirements, it is suitable for industrial environments and can adapt to extreme operating conditions such as temperature changes and current fluctuations, ensuring long-term stable operation and maintaining excellent control performance even in harsh environments.

• Multiple Protection Functions: Built-in protection functions such as overvoltage, overcurrent, and undervoltage enhance equipment safety and effectively prevent faults.

• Flexible Configuration: Supporting multiple communication protocols and interfaces, it can be easily integrated with other automation devices or control systems to adapt to different control needs. It can seamlessly integrate with different types of generator sets, motors, and control systems to provide flexible control solutions.

• Modern Control Technology: Incorporating digital control technology, it offers higher precision and faster response speed.

Technical Parameters

1. Input Characteristics

• Rated Input Voltage: Typically AC 220V or AC 380V; some modules may also support DC inputs such as DC 24V or DC 48V.

• Input Voltage Range: Generally tolerates certain voltage fluctuations, e.g., ±10%–±15% for AC inputs and ±5%–±10% for DC inputs. For example, if the rated input is AC 220V, the input voltage range may be AC 198V–242V.

• Input Frequency: For AC inputs, it usually supports industrial standard frequencies of 50Hz or 60Hz, with allowable frequency deviations (e.g., ±5%).

2. Output Characteristics

• Output Current: Varies depending on the driven load, typically between 5A and 20A, providing sufficient current for the generator's excitation winding.

• Output Voltage Range: The output voltage is usually adjustable to meet the excitation requirements of different generators, possibly ranging from DC 0V–100V or higher, depending on the product design.

• Voltage Regulation Accuracy: Achieves high regulation accuracy, generally ±0.5%–±1%. For example, when the set output voltage is 50V, the actual output voltage will be between 49.75V and 50.25V.

3. Control Performance

• Response Time: A fast response time (typically 10ms–50ms) is critical for timely adjustment of the excitation current, enabling rapid adaptation to changes in generator load or grid voltage fluctuations.

• Control Algorithms: Employs advanced control algorithms such as PID control or more complex intelligent control algorithms to achieve precise voltage regulation and stable system operation.

• Communication Interfaces and Protocols: Supports multiple communication interfaces (e.g., RS-485, CAN, Ethernet) and is compatible with common communication protocols (e.g., Modbus, Profibus, OPC) for easy data interaction and remote control with upper-level computers or other control systems.

4. Protection Function Parameters

• Overvoltage Protection: Triggers when the output voltage exceeds a set threshold (typically 120%–150% of the rated output voltage). For example, if the rated output voltage is 50V, overvoltage protection may activate between 60V and 75V.

• Overcurrent Protection: Activates when the output current exceeds a certain proportion of the rated value (usually 150%–200% of the rated output current). For example, if the rated output current is 10A, overcurrent protection may trigger at 15A–20A.

• Undervoltage Protection: The module enters undervoltage protection when the input voltage drops below a set lower limit (generally 80%–90% of the rated input voltage). For a rated input voltage of 220V, undervoltage protection may activate at 176V–198V.

• Overheat Protection: Triggers when the internal temperature of the module exceeds a certain value (typically 80°C–100°C) to prevent equipment damage due to overheating.

5. Operating Environment Parameters

• Operating Temperature Range: Designed for wide industrial environments, typically -20°C–70°C or -40°C–85°C, depending on the product design and application scenario.

• Humidity Range: Capable of operating in high relative humidity environments (generally 5%–95% RH, non-condensing) to ensure stable operation in damp industrial environments.

• Altitude Limit: For equipment used in high-altitude areas, there may be altitude restrictions (e.g., no more than 2000m or 3000m) to account for the impact of thin air on equipment heat dissipation and insulation performance.

Working Principle

1. Input Signal Processing

• Receiving Control Commands: It receives digital signals (such as PWM pulses, trigger signals, or logic control signals) from higher-level control systems (such as ABB's AC800M controller).

• Signal Conditioning: Filters and shapes the input signals to eliminate interference and ensure signal quality.

• Protocol Conversion (if necessary): Converts input communication protocols (such as Modbus, Profinet) into signal formats recognizable by the module.

2. Pulse Generation and Distribution

• Pulse Generation: Generates trigger pulses with specific timing (such as sine waves, square waves, or customized waveforms) according to input commands to control the on/off of power devices.

• Multi-Channel Distribution: Distributes single or multiple pulse signals to multiple output channels (possibly corresponding to multiple power devices, such as inverter bridge arms) to ensure the synchronism and phase accuracy of pulses in each channel.

• Isolation and Amplification: Uses optocoupler isolation or electromagnetic isolation technology to prevent high-power interference from the output side to the low-power input side, while amplifying pulse signals to drive the gates of power devices (such as IGBT gates).

3. Power Control Logic

• Synchronization and Coordination: In multi-module parallel or multi-level topology, it ensures strict synchronization of pulses output by each module to avoid circulating currents or device damage caused by timing deviations.

• Protection Functions:

• Monitors output current and voltage in real time. If overcurrent, overvoltage, or short circuit is detected, it immediately blocks pulses and triggers an alarm.

• Supports redundant design (such as dual-pulse backup) to improve system reliability.

4. Feedback and Communication

• Status Feedback: Feeds back the module's operating status (such as normal power supply, effective pulse output, fault alarm, etc.) to the higher-level system through indicator lights (such as LEDs) or communication interfaces (such as RS-485, CAN).

• Parameter Configuration: Supports remote configuration of parameters such as pulse frequency, duty cycle, and dead time through software (such as ABB's Control Builder) to adapt to different working conditions.

Key Technical Features

• High-Precision Synchronization: Achieves nanosecond-level pulse timing control using digital signal processing (DSP) or field-programmable gate array (FPGA).

• Electrical Isolation: Uses optocoupler or magnetic isolation technology between input/output channels, with an isolation voltage of up to thousands of volts to meet industrial-level anti-interference requirements.

• Wide Temperature Operation: Adapts to industrial environment temperatures (such as -40°C ~ +70°C) and supports long-term stable operation.

• Modular Design: Supports standard rail mounting for easy system integration and maintenance.
