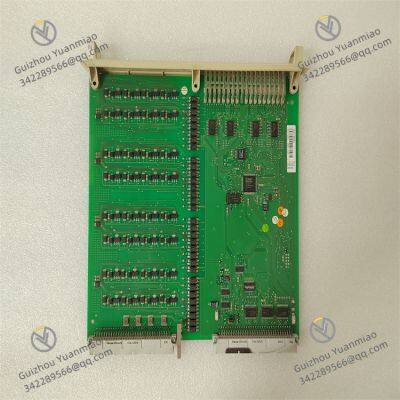

ABB DSDO115A 3BSE018298R1 Digital Output Board

Output Channels: 8 independent digital outputs supporting DC 24V signals (Logic "1": 24V DC output, Logic "0": 0V output), capable of driving resistive and inductive loads (e.g., relays, solenoid valves).

Electrical Isolation: Each channel is optocoupler-isolated from the system with isolation voltage ≥500V AC to prevent external interference from affecting the controller.

Protection Mechanisms: Built-in short-circuit and overload protection automatically cuts off output during load anomalies to avoid module damage; supports surge absorption (e.g., back EMF protection for inductive loads during power-off).

LED Indicators: Each channel has a corresponding status indicator (ON for valid output signal), with POWER and FAULT indicators on the module top for real-time operation status display.

Fault Diagnosis: Supports channel-level fault detection (e.g., short circuit, open circuit, overload), with fault information transmitted to the controller via the bus for quick problem location.

Communication Interface: Communicates with the controller through the S800 I/O backplane, supporting parameter configuration (e.g., output polarity, fault response mode) via ABB Control Builder software.

Hot-Swap Support: Enables module replacement without powering off, reducing system downtime and suitable for continuous operation scenarios.

Installation Methods:

Environmental Requirements: Keep away from strong electromagnetic sources, working humidity ≤95% (no condensation), reserve ≥10mm heat dissipation spacing.

Power Supply Wiring: Use 1.5mm2 shielded cables to connect 24V DC power (+24V/GND) with correct polarity, recommend a series 2A fuse.

Output Signal Wiring:

Grounding: Connect the module grounding terminal to the system grounding bus (ground resistance ≤10Ω) to reduce electromagnetic interference.

Hardware Check: Ensure the module is firmly installed, power and output wiring have no short circuits, COM terminals are correctly connected, and freewheeling diodes for inductive loads have correct polarity.

Software Configuration: Add the module model (DSDO115A) in ABB Control Builder, configure output type and fault response mode, and assign I/O addresses (e.g., %Q0.0-%Q0.7).

Function Test: Send output signals via the controller, observe whether the corresponding channel LED indicators light up, and measure load voltage to confirm it matches expectations (24V or 0V).

POWER: Steady on → normal power supply; off → check power wiring or fuse.

FAULT: Off → normal operation; steady on → module fault (possible output short circuit, overload, or internal circuit anomaly), requiring power-off to check load or replace the module.

Channel LED: Steady on → valid output signal; off → no output signal or open circuit (check load damage or loose wiring).

No output from a channel: Check for loose wiring, load short circuit, or test with a replacement channel.

Abnormal heating of output: Likely due to load overload or short circuit, requiring load disconnection for step-by-step troubleshooting.

Malfunction of multiple channels: Possibly caused by electromagnetic interference; strengthen grounding or use shielded cables, and ensure loads meet specifications.

Manufacturing Production Lines: Drive cylinder solenoid valves and conveyor motor contactors for workpiece sorting or equipment start/stop control, such as robotic arm motion control in food packaging lines.

Power Systems: Control circuit breaker and disconnector switching coils, connect to PLC for substation automation control.

Process Automation: Control feed valves and agitator motor start/stop in chemical reactors, interlock with safety systems.

Building Automation: Drive access control electric locks and fire smoke dampers, connect to BA systems for security and fire protection interlocking.
