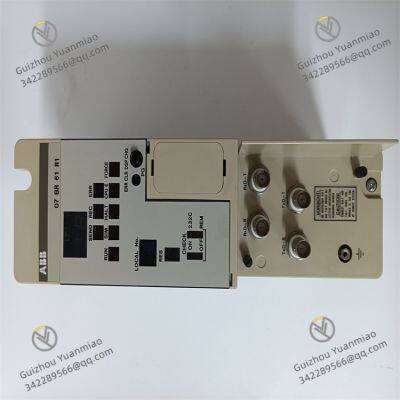

ABB 07BR61R1 GJV3074376R1 Motion Controller

ABB 07BR61R1 GJV3074376R1I. Basic Overview

II. Functional FeaturesCore Functions

• Communication Protocol Support:
  Embeds multiple industrial communication protocols (e.g., Modbus RTU/TCP, CANopen, EtherNet/IP, etc.), supporting real-time data interaction with upper computers, sensors, or actuators. It enables cross-device communication protocol conversion (e.g., converting RS485 signals to Ethernet signals).

• Signal Relaying and Amplification:
  Supports signal relaying and enhancement, extending communication distance (e.g., RS485 communication distance up to 1,200 meters), reducing signal attenuation, and ensuring stable transmission in complex industrial environments.

• Data Processing and Caching:
  Features data buffering and preprocessing capabilities, enabling temporary storage of real-time data and optimizing transmission efficiency. It supports high-speed communication with the main control system (transmission rate up to 100Mbps).

Protection and Diagnosis

• Built-in overvoltage and overcurrent protection circuits to prevent module damage from surges or abnormal voltages;

• Real-time self-checking function, displaying operating status through LED indicators (e.g., RUN, COMM, ERROR), and supporting fault code reporting (e.g., communication interruption, protocol errors, etc.) for quick problem localization.

III. Performance Parameters

IV. Installation and Wiring GuideInstallation Methods

• Rail Installation: Quickly install in control cabinets via 35mm DIN rails, supporting horizontal or vertical installation; reserve 15mm heat dissipation space on both sides.

• Screw Fixing: Optionally fix to the backplane with screws; wear an anti-static wristband during installation to avoid electrostatic damage to components.

Wiring Specifications

• Power Supply Wiring: Use 1.5mm2 shielded cables to connect 24V DC power, with correct positive/negative polarity; recommend a series 2A fuse.

• RS485 Wiring: Adopt shielded twisted-pair cables, twist A/B wires, install a 120Ω terminal resistor, and keep wiring length ≤1,200 meters.

• Ethernet Interface: Use CAT5e or CAT6 cables, supporting auto-negotiation of 10/100Mbps rates; recommend connecting to industrial-grade switches.

• CANopen Wiring: Use dedicated CAN cables, install a 120Ω terminal resistor, and support multi-node networking (up to 127 nodes).

V. Debugging and Fault TroubleshootingInterpretation of Indicator Status

• RUN (Green): Steady on → normal operation; flashing (1Hz) → initializing; off → power failure or hardware anomaly.

• COMM (Yellow): Steady on → normal communication connection; flashing → data transmission in progress; off → communication interruption (check cables, protocol parameters, or interface chips).

• ERROR (Red): Steady on → overheating, overload, or protocol error; flashing → configuration error (read fault codes via the upper computer, e.g., 0x0010 indicates baud rate mismatch).

Common Fault Handling

• Communication Interruption: Confirm that communication parameters (baud rate, address, parity bit) match the upper computer; use a multimeter to test cable continuity; replace interface chips (if damaged).

• Unstable Signal: Check grounding, keep away from high-power equipment to reduce electromagnetic interference; replace shielded cables or add signal repeaters.

• Module Overheating: Clean dust from heat dissipation holes, check the operating status of control cabinet fans, and avoid adjacent installation with high-power components.

VI. Application ScenariosPower Industry:

• Used in substation automation systems to enable communication between protection devices and integrated automation systems; in medium-high voltage frequency converters, connects upper computers with motor control modules to transmit parameters such as speed and current.

Industrial Manufacturing:

• In metallurgical production lines, serves as a communication bridge between PLC and sensors to transmit rolling mill pressure and temperature data in real time; in chemical fields, connects DCS systems with field instruments to monitor reactor parameters.

Rail Transit:

• In train traction systems, converts control signal protocols to support high-speed communication between traction motors and the main control system; in platform screen door control, coordinates with PLC to realize signal transmission for door opening/closing logic.

VII. Comparison with Similar Modules (Taking ABB 07BR62R1 as an Example)
