Home > Products > Outdoor Advertising LED Display > Full Color Outdoor Advertising LED Display Billboard

Full Color Outdoor Advertising LED Display Billboard

FOB Price

US$ $1 - $1 / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Newstar-LED		Place of Origin	China
Model Number	NS-OR-DD-P12

Product Description

Delivery Time:8-25days after received the payment
Certification:CE, RoHS, UL, FCC, ISO

Quick Detail:

1. Best after sale service.

2. Refresh Frequency ≥240HZ, Frame Frequency ≥60HZ,

3. High brightness: >6000cd/㎡,

4. Dynamic 1/4 duty Constant Current,

Wall Mount Full Color P12 Outdoor Advertising LED Display For Shopping Mall 2R1G1B

Description:

1. High Quality and Reliability

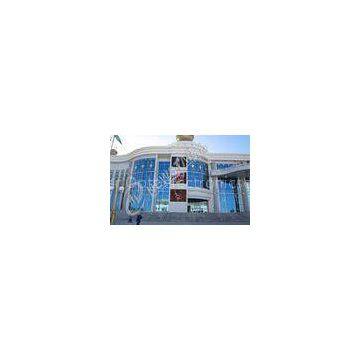

This project has?been?installed almost?3?years in Turkmenistan, while there is?no service?called from now

on.

2. Perfect uniformity and no mosaic

Using same mixing LED lights to make sure the great LED board.?

3. High Contrast

The Contrast is above 2000:1, so the viewer can have a wonderful visual

Applications:

Commercial advertising:?Square,?Road side, High way, Airport, Wharf, Hotel, Restaurant etc

Specifications:

1. Outdoor LED Display Module? ? ? ? ??

Module Size (W*H)	192mm*192mm	Pixel Configuration	1R1G1B
Pixel Pitch	12mm	? ? ?Resolution (W*H)	16 dots*16 dots
Pixel Density	6944dots/㎡	LED Type	3mm Oval Lamp

2. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1152mm*768mm	Module Qty	24 pcs
? Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	40 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2

3. Methods for Quality Assurance

a. Aging

b. Vibration Testing

4. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P12
Pixel Pitch	12mm
Module Size	192 mm ×192mm
Module Resolution(Pixel)	16 dots×16dots
Pixel Density	6944 dots/m2
LED Type	3mm Oval Lamp
Pixel Configuration	2R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	1152×768×150mm
Cabinet Resolution	96dots×64dots
Brightness	≥6000 cd/m2
Contrast	≥2000:1
Viewing Angle	110°(Horizontal )/45°(Vertical )
Best Viewing Distance	10~300 m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	1000 W/m2
Average Power Consumption	350W/m2
Working Voltage	AC220V/110V s±15% 50-60 HZ
Frame Frequency	≥60HZ
Refresh Frequency	≥240HZ
Brightness Correction	Pixel, M
