Home > Products > Curved LED Display > SMD3528 P10 Flexible Curved LED Display Screen For Indoor Club

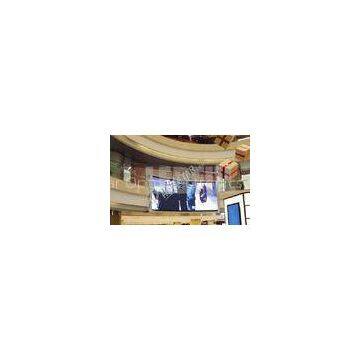

SMD3528 P10 Flexible Curved LED Display Screen For Indoor Club
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
SMD 3 in 1 P5 HD Indoor Full Color LED Display for Advertising 40000 dots/m2
-
SMD P5.21 High Resolution Indoor LED Video Display Screen For Event , Stage
-
P6.25mm Aluminum Alloy Indoor Full Color LED Display Screen 1R1G1B , Light Weight
-
P6 High Resolution Indoor Full Color Led Display for Shopping Malls 1R1G1B 2000 cd/m2
-
P7.62mm Indoor Full Color LED Screen for Stage , High Brightness 140(H)/60(V)
-
P8 Rental LED Video Wall , SMD Indoor LED Full Color Display For Bus Station
Product Details
| Brand Name | Newstar-LED | Place of Origin | China | |
| Model Number | NS-IR-DS-P10 |
Product Description
Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. ≤1mm surface level up, smooth video
2. Curved Design and Good Appearance
3. Perfect quality and stability, 24/7 running
4. Front or Rear Access Service
5. Long lifespan up to 100,000 hours
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
SMD3528?P10?Flexible?Curved?LED?Display?Screen?For?Indoor?Club
Description:
1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can
be shaped into column to wrap pillars for animation decoration.
2. Easy to maintain, high resolution, good contrast ratio,lightweight, easy to install. Widely used as the
information billboard in Airport, Railway station, and big shopping mall, concert and etc.
3. The brightness of indoor LED signs can be adjustable for different environment.
4. We make best design with high cost- efficiency due to different demands and we can offer OEM service
as well.
?
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, etc;
Specifications:
1. Indoor LED Display Technical Parameter??
|
Model No. |
NS-IR-DS-P10 |
|
Pixel Pitch |
10mm |
|
Module Size |
160mm×160 mm |
|
Pixel Density |
10000dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
960×960×135mm |
|
Cabinet Resolution |
96dots×96dots |
|
Brightness |
≥1500 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
8m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
825W/m2 |
|
Average Power Consumption |
280 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Con |
