Home > Products > Stadium Perimeter LED Display > Flexible Advertising LED Display For Stadium Perimeter
Flexible Advertising LED Display For Stadium Perimeter
- T/T L/C D/P D/A
- 7 days
You May Like
-
Advertising Full Color Indoor Led Signs , RGB P6 SMD 3528 LED Display Boards
-
High Definition P10 Stadium Perimeter LED Display for Advertising , 10000dots/sqm
-
Economical P25 Stadium Perimeter LED Display Signs Flexible , Waterproof 200mm * 200mm
-
P5 Rental Advertising Indoor LED Display Signs Full Color , IP31 40000 dots/
-
Concert LED Screens , Portable Outdoor LED Signs P12mm For Theatre , Trade Show
-
HD P3.91mm Die-Casting LED Display Full Color With No Mosaic
Product Details
Brand Name | Newstar-LED | Place of Origin | China | |
Model Number | NS-OR-DD-P12 |
Product Description
Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. High Brightness more than 5800cd/sqm
2. Soft mark used
3. Adjustable and flexible support
4. High definition and quick rigging system design
5. Waterproof and 2 years warranty
Flexible P12 Outdoor Advertising LED Display Signs For Stadium Perimeter , 5800cd/sqm
Description:
1. High Brightness
High brightness delivers clear pictures and text to audience in a far distance
2. Soft Mask
Soft mask design delivers good protection to the players and also decreases damage to LEDs.
3. Adjustable support and quick rigging system
Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick rigging
system design makes the installation and dismantle easier and faster.
4. High Quality and Reliability
Our many outdoor screens have been used by our clients around the world for 3-5 years and rarely
product issues are called.
5. Waterproof and 2 Years’ Warranty
Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.
?
Applications:

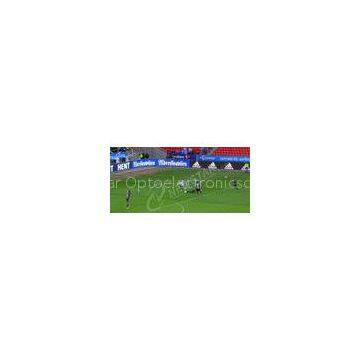

Stadium inside and outside such as football pitch, baseball, basketball etc
Specifications:
1. Outdoor LED Display Module? ? ? ? ? ??
Module Size (W*H) |
192mm*96mm |
Pixel Configuration |
1R1G1B |
Pixel Pitch |
12mm |
? ? ?Resolution (W*H) |
16 dots*8 dots |
Pixel Density |
6944 dots/㎡ |
LED Type |
3mm Oval Lamp |
2. Outdoor LED Display Cabinet
Cabinet Size (W*H) |
960mm*768mm |
Module Qty |
40pcs |
? Cabinet Resolution (W*H) |
80 dots*64 dots |
Cabinet Pixel |
5120 |
Weight |
40 kg/ Cabinet |
Area |
0.737㎡ |
Average Power Consumption |
300w/㎡ |
Max Consumption |
1000 W/m2 |
3. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
4. Outdoor LED Display Technical Parameter? ? ?
Model No. |
NS-OR-DD-P12 |
Pixel Pitch |
12mm |
Module Size |
192mm*96mm |
Module Resolution (W*H) |
16 dots*8dots |
Pixel Density |
6944 dots/ ㎡ |
LED Type |
3mm Oval Lamp |
Pixel Configuration |
1R1G1B |
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
Drive Mode |
Dynamic 1/4 Duty Constant Current |
Cabinet Size |
960×768×150mm |
Cabinet Resolution |
80dots×64dots |
Brightness |
≥5800cd/㎡ |
Contrast |
≥4000:1 |
Viewing Angle |
