Full Color Advertising Football Stadium Perimeter LED Display Boards P12mm , 5800cd/
- T/T L/C D/P D/A
- 7 days
You May Like
-
P10 Indoor Full Color LED Display , SMD 3528 Stage LED Screen Panel 1500 cd/m2
-
High Brightness P10 Flexible LED Video Screen For Shopping Square Advertising
-
DIP P10 Outdoor Curved LED Display For Bus Station , 7000 cd/m2
-
High Brightness P7 Curtain LED Display For Exhibition , Stage
-
P20 Full Color Outdoor LED Display Panel For Building Top
-
P12 Outdoor Advertising LED Display , IP65 LED Display Panel
Product Details
Brand Name | Newstar-LED | Place of Origin | China | |
Model Number | NS-OR-DD-P12 |
Product Description
Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. 28°support adjustable
2. Soft mark used
3. High Brightness more than 8000cd/sqm
4. Long lifespan up to 100,000 hours
5. Waterproof and 2 years warranty
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Full Color Advertising Football Stadium Perimeter LED Display Boards P12mm , 5800cd/㎡
Description:
1. High Definition & High Brightness
High definition deliver vivid picture from video, image etc. High brightness enables to let LED display have a
farther distance.
2. Soft Mask
Soft mask design delivers good protection to the players and also decreases damage to LEDs.
3. Adjustable support and quick rigging system
Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick rigging
system design makes the installation and dismantle easier and faster.
4. High Quality and Reliability
Our many outdoor screens have been used by our clients around the world for 3-5 years and rarely
product issues are called.
5. Waterproof and 2 Years’ Warranty
Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.
?
Applications:

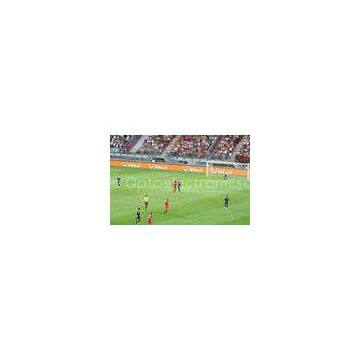

Stadium inside and outside such as football pitch, baseball, basketball etc
Specifications:
1. Outdoor LED Display Technical Parameter? ? ?
Model No. |
NS-OR-DD-P12 |
Pixel Pitch |
12mm |
Module Size |
192mm*96mm |
Module Resolution (W*H) |
16 dots*8dots |
Pixel Density |
6944 dots/ ㎡ |
LED Type |
3mm Oval Lamp |
Pixel Configuration |
1R1G1B |
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
Drive Mode |
Dynamic 1/4 Duty Constant Current |
Cabinet Size |
960×768×150mm |
Cabinet Resolution |
80dots×64dots |
Brightness |
≥5800cd/㎡ |
Contrast |
≥4000:1 |
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
Best Viewing Distance |
10m-300m |
Grey Scale |
10bits/1024levels |
Color Capability |
16777216 |
Color Temperature |
5000-9300K |
Maximum Power Consumption |
1000 W/m2 |
Average Power Consumption |
350 W/m2 |
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
Frame Frequency |
60-85 HZ |
Refresh Frequency |
240 - 1000HZ |
Brightness Correction |
Pixel, Module, Cabinet Correction |
Operating Temperature |
Static:-40℃~+85℃Working:-20~+65℃ |
Operating Humidity |
10-90% RH |
LED Lifespan |
100,000 hours |
MTBF |
≥50,000 hours |
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
Graphics Card |
DVI Graphics Card |
