Home > Products > Die-Casting LED Display > P3.91 IP21 Aluminum Die-Casting LED Display , 288mm * 288mm
P3.91 IP21 Aluminum Die-Casting LED Display , 288mm * 288mm
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
P6.25 Light Weights Die-Casting LED Display Indoor For Airports , Harbors
-
P5.21 3 In 1 RGB Slim Led Display Boards Indoor For Disco , Bar
-
HD P4.46 3 In 1 Indoor Rental LED Display Advertising For Mobile Media
-
HD P3.91 SMD3528 Die-Casting LED Display , Ultra Thin LED Display
-
High Resolution P4 Indoor Full Color LED Display Screen For Airports
-
Wall Mounted P20mm Flexible LED Display Board , Full Color Led Signs
Product Details
| Brand Name | Newstar-LED | Place of Origin | China | |
| Model Number | BS-3 |
Product Description
Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. Light weight and convenient to install
2. Available models: P3.91, P4.46, P5.2, P6.25.
3. Great uniformity and no mosaic
4. Excellent contrast ratio, high resolution/high definition
5.?One cabinet size is 576x 576 x 83mm
6.?Lifespan≥100000Hours
P3.91?IP21?Aluminum?Die-Casting?LED?Display?,?288mm?*?288mm
Description:
1. Fast Installation
An average worker can install more than 70 cabinets within one hour W/O tool.
2. Die Casting Design
Solid, light weight, good appearance, anti-corrosiveness
3. Light Weight
Only 8.5KG per cabinet, 34KG for one square meter.
4. Slim Design
One cabinet size is 576x 576 x 83mm
?

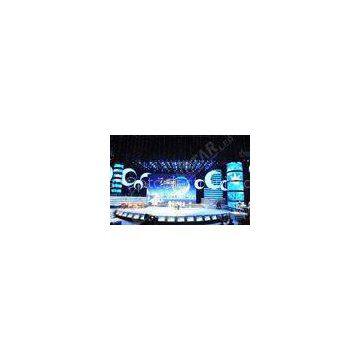

Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
?
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P3.91 |
|
Pixel Pitch |
3.91mm |
|
Module Size |
288*288mm |
|
Module Resolution(pixels) |
72*72 |
|
Panel Size |
576mm×576mm |
|
Panel Resolution(pixels) |
147×147 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(pixels/m2) |
86436 |
|
Brightness(cdm2) |
2000 |
|
Best Viewing Distance(m) |
6-100 |
|
Max.Power Consumption(W/m2) |
1350 |
|
Waterproof Level |
IP21 |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
LED SPEC |
2020 |
|
Viewing Angle |
140°(H)/60°(V) |
|
Operating Tempreture |
–20~50°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥300HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50000 hours |
|
Lifespan |
≥100000Hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Drive Mode |
Constant 1/10 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Control System |
LINSN |
|
Software |
LED studio 10.0 |
|
Installation |
Wall mount, hung and stand structure |
2. Indoor LED Display Module
|
Dimensions (w x h) |
288mmx288mm |
Resolution (w x h) |
72x 72 |
|
Pixel pitch |
3.91mm |
Pixel Dens |
