Home > Products > Indoor Full Color LED Display > P10 Indoor Full Color LED Display , SMD 3528 Stage LED Screen Panel 1500 cd/m2

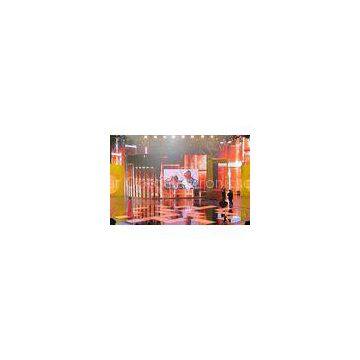

P10 Indoor Full Color LED Display , SMD 3528 Stage LED Screen Panel 1500 cd/m2

FOB Price

US$ $800 - 900 /. / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Newstar-LED		Place of Origin	China
Model Number	NS-IR-DS-P10

Delivery Time:8-25days after received the payment
Certification:CE, RoHS, UL, FCC, ISO

P10 Indoor Full Color LED Display , SMD 3528 Stage LED Screen Panel ≥1500 cd/m2

Quick Detail:

1. ≤1mm surface level up, smooth video

2. Perfect quality and stability, 24/7 running

3. Standard cabinet, easy transport and installation

4. Compatible different signal input

5. Longer lifespan. (more than 100,000 hours life)

6. Support any format of video,RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION

Description:

1. With good lightening accordance and no mosaic.

2. Can play different formats of image files, flash,WAV/MIDI

3. Hign brightness, and can be adjusted to meet the requirements of costomers.

4. Better viewing effect because of using?the real pixels instead of virtual pixels.

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter? ? ?

Model No.	NS-IR-DS-P10
Pixel Pitch	10mm
Module Size	160mm×160 mm
Pixel Density	10000dots/m2
LED Type	SMD 3 in 1
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	960×960×135mm
Cabinet Resolution	96dots×96dots
Brightness	≥1500 cd/m2
Contrast	≥ 2000:1
Viewing Angle	140°(Horizontal )/140°(Vertical )
Best Viewing Distance	8m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	825W/m2
Average Power Consumption	280 W/m2
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40°C ~+85°C Working:-20~+65°C
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System	LED studio 10.0
Software	LINSN OR DB-STAR
Waterproof Level	IP31
