Economical P25 Stadium Perimeter LED Display Signs Flexible , Waterproof 200mm * 200mm
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
P5 Rental Advertising Indoor LED Display Signs Full Color , IP31 40000 dots/
-
Concert LED Screens , Portable Outdoor LED Signs P12mm For Theatre , Trade Show
-
HD P3.91mm Die-Casting LED Display Full Color With No Mosaic
-
HD P6 Hanging Die-Casting LED Display Indoor For Telecommunications
-
P7 Waterproof Outdoor Transparent LED Screen Curtain For Show
-
P20 Wall Mounted Front Service LED Display Outdoor For Advertising
Product Details
| Brand Name | Newstar-LED | Place of Origin | China | |
| Model Number | NS-OR-DD-P25 |
Product Description
Certification:CE, RoHS, UL, FCC, ISO
Economical P25 Stadium Perimeter LED Display Signs Flexible , Waterproof 200mm * 200mm
Quick Detail:
1. 28°support adjustable
2. Soft mark used
3. High Brightness more than 8000cd/sqm
4. Long lifespan up to 100,000 hours
5. Waterproof and 2 years warranty
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Description:
1. Economical
Used for playing image and text etc and it still can meet clients’ requirement for logos, advertisement play
etc.
2. Soft Mask Applied
Soft mask design delivers good protection to the players and also decreases damage to LEDs.
3. Quick rigging system
Quick rigging system makes the installation and dismantle be easier and faster.
4. High Quality and Reliability
Our many outdoor screens have been used by our clients around the world for 3-5 years and rarely
product issues are called.
5. Waterproof and 2 Year Warranty
Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.
6. CE & Rohs Certified
Applications:

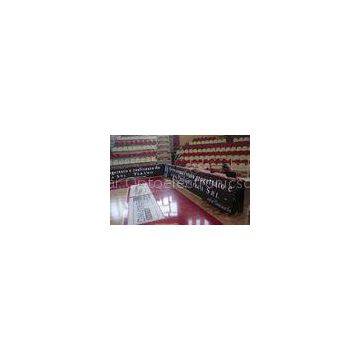

Stadium inside and outside such as football pitch, baseball, basketball etc
Specifications:
1. Outdoor LED Display Technical Parameter? ? ?
|
Model No. |
NS-OR-DD-P25 |
|
Pixel Pitch |
25mm |
|
Module Size |
200mm*200mm |
|
Module Resolution (W*H) |
8dots*8 dots |
|
Pixel Density |
1600 dots/ ㎡ |
|
LED Type |
5mm Oval Lamp |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
1000×1000×150mm |
|
Cabinet Resolution |
40dots×40dots |
|
Brightness |
≥5500cd/㎡ |
|
Contrast |
≥4000:1 |
|
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
|
Best Viewing Distance |
10m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000 W/m2 |
|
Average Power Consumption |
350 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40℃~+85℃Working:-20~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
