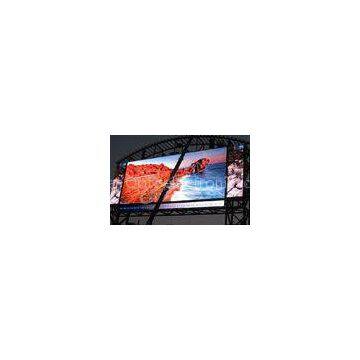

P25 Full Color Led Outdoor Display Board For Outdoor Building
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
SMD3528 P10 Flexible Curved LED Display Screen For Indoor Club
-
SMD 3 in 1 P5 HD Indoor Full Color LED Display for Advertising 40000 dots/m2
-
SMD P5.21 High Resolution Indoor LED Video Display Screen For Event , Stage
-
P6.25mm Aluminum Alloy Indoor Full Color LED Display Screen 1R1G1B , Light Weight
-
P6 High Resolution Indoor Full Color Led Display for Shopping Malls 1R1G1B 2000 cd/m2
-
P7.62mm Indoor Full Color LED Screen for Stage , High Brightness 140(H)/60(V)
Product Details
| Brand Name | Newstar-LED | Place of Origin | China | |
| Model Number | NS-OR-DD-P25 |
Product Description
Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. High brightness
2. Wide viewing angle and large viewing distance video led
3. LED outdoor waterproof video
4. Energy saving
5. CE.RoHS,CCC,ISO,UL
6.?Waterproof Level:?IP65(Front Side), IP54 (Back Side)
P25?Full?Color?Led?Outdoor?Display?Board?For?Outdoor?Building
Description:
1. Energy Saving?
Adopt high-brightness LED with low consumption and 90% ?efficiency ?power supply saving 20% power
energy.?
2. Durable fresh color and High brightness
65536 ?grey scale and the 281 billion color and more than 1200 HZ refresh rate ensure wonderful video?
color presentation?
3. Stability and reliability
Precise manufacturing process keeps the modules rugged and durable.?
Applications:
Outdoor full color?digital?billboard are very popular in LED display advertising field.?This type digital?
billboards are widely used??Outdoor plaza, Outdoor building, stadium, shopping mall, cross road ,highway,
airport etc;
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DD-P25 |
|
Pixel Pitch |
25mm |
|
Module Size |
200mm×200mm |
|
Module Resolution(Pixel) |
8dots×8dots |
|
Pixel Density |
1600dots/m2 |
|
LED Type |
5mm Oval Lamp |
|
Pixel Configuration |
2R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Static Constant Current |
|
Cabinet Size |
1000×1000×150mm |
|
Cabinet Resolution |
40dots×40dots |
|
Brightness |
≥6000cd/m2 |
|
Contrast |
≥1500:1 |
|
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
|
Best Viewing Distance |
18m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
400W/m2 |
|
Average Power Consumption |
130W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240-1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C~+85°C Working:-20°C~+60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
