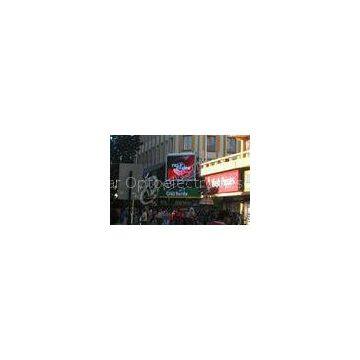

IP65 SMD 3528 P8mm Billboard LED Display Outdoor For Shopping Mall
- T/T L/C D/P D/A
- 7 days
You May Like
-
P10 Electronic Billboard LED Display Advertising , High Definition
-
IP65 P16 1R1G1B Billboard LED Display Full Color For Cross Road
-
P16 Outdoor LED Billboard Display , 1R1G1B Advertising Led Screen
-
P20 1R1G1B Billboard LED Display For Advertising , Aluminum / Iron
-
P25 Full Color Led Outdoor Display Board For Outdoor Building
-
SMD3528 P10 Flexible Curved LED Display Screen For Indoor Club
Product Details
| Brand Name | Newstar-LED | Place of Origin | China | |
| Model Number | NS-OR-DS-P8 |
Product Description
Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. P8 outdoor led board?
2. Size changeable?
3. Variety input source?
4. Longer view distance?
5. High brightness& refresh rate
6.?Waterproof Level:IP65
IP31?SMD?3528?P8?Billboard?LED?Display?Outdoor?For?Shopping?Mall
Description:
1. Arbitrarily exchanging the display or displaying synchronized video
2. Combining several global leading display board control technologies, such as grey?level code
technology, brightness control technology, and nonlinearly rectifying?technology
3. Modularization, high resolution and high contrast design, vivid dynamic display
4. Long lifespan, can reach more than 100,000 hours, while the power consumption?is lower than one tenth
of lamp or neon
5. Economical maintenance and cost saving
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such
as?banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Outdoor LED Display Technical Parameter? ?
|
Model No. |
NS-OR-SD-P8 |
|
Pixel Pitch |
8mm |
|
Module Size |
256mm×128 mm |
|
Module Resolution(Pixel) |
32dots×16dots |
|
Pixel Density |
15625dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
1024×768×135mm |
|
Cabinet Resolution |
128dots×96dots |
|
Brightness |
≥6000 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
6m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
780W/m2 |
|
Average Power Consumption |
260W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Com |
