G90 G115 Carbon Steel Arch Culvert Panel Silo Equipment Cold Roll Forming Equipment

FOB Price

USD $300000$ - $500000$ / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ZOOY		Place of Origin	China
Model Number	ZO-SILO1500

Delivery Time:80days after get 30% down payment
Certification:CE

PLC Control System For Arch Culvert Panel Roll Forming Machine With 30m/ min Speed

Main Specifications???
?

Thickness: 1,0-4,0 mm

Minimum yield strenght: 345 MPA

Minimum tensile strength: 450 MPA

Minimum elongation in 50 mm is 12 percent.

Galvanizing Standard: G90 (Z275), G115 (Z350), G140 (Z450)

Corrugation profile:

Length of the sheet walls have to be adjustable by PLC.

PLC has to count produced sheet wall quantities.

All bearings will be SKF or FAG.

Design: According to the disigned agreed drawing by both sides.

Specifications?For Main Machine
?

Coil Material?	Thickness	1.0-4.0mm ? ? ? ?
Coil width	Depend on customer’s requires
Yield Strength	345-450Mpa
Material	GI. Carbon Steel?
Decoiler / Uncoiler	Coil Width???????????????????	Max. 1500mm
I.D	510-610mm
O.D	Max. 1300mm
Capability	Max. 10 Tons
Decoiler type	Manual / Hydraulic/Automatic
Feeding & Leveling	Pinch feeding	3?Units ( 6 Rollers )
Leveling	7 Rollers ( Upper 3 Rollers, Bottom 4 Rollers )
Punching device	Punching ?motion	Hydraulic Punching, Post-punching
Punching dies	Cr12 Mov Steel, HRC58-62
Punching?? station?	?1-2 Unites ( depend on hole patterns )
Punching in longitude controlled by PLC, punching at horizontal adjusted by manual hand wheel.
Cutting device	Cutting motion	Hydraulic Cutting, post-Cutting ( cutting sheet after forming )
Cutting blades	Cr12Mov with heat treatment HRC58-62
Length Measuring	Automatic length measuring by encoder & PLC.
Cutting Tolerance	1.5mm(per 3m)
Roll Forming?Machine	Forming Stations	17?Stations
Rectifying	1 unit
Roller material	GCr15 steel, heat treatment
Diameter of shaft	80mm
Shaft material	High grade 45# steel
Drive type	Chains
Forming speed	0-15m/min
Main power	22KW(11kw*2)
Servo motor	2 Units
Electrical control	PLC	PANASONIC Brand or Custom-made
Inverter	YASKAWA Brand or Custom-made
Touch screen	MCGS Brand?or Custom-made
Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Hydraulic power	30KW
Runout Table	Table type	Simple non-power type
Function	To support the finished panels
TOTAL WEIGHT		APRRO 25 TONS

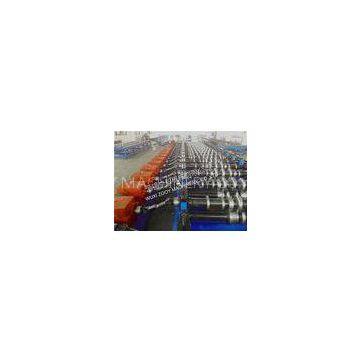

Products Photos
