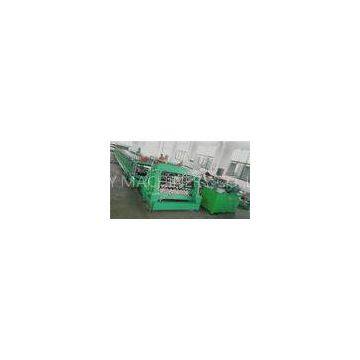

Grain Panel Silo Making Machine roller forming machine with Hydraulic station

Roll forming main machine

1 unit

10TONS Un-coiler

1 unit

PLC Control panel

2 unit

Hydraulic station

1 unit

Post-cutting device

1 unit

Post-punching device

1 unit

Safety cover device

1 unit

Bending Machine

Manual out table

2 unit

Coil Material?

Thickness

2.0-4.0mm ?

Coil width

Depend on customer’s requires

Yield Strength

250-350Mpa

Material

GI. Carbon Steel

Decoiler / Uncoiler

Coil Width????????????????

Max. 1500mm

I.D

510-610mm

O.D

Max. 1300mm

Capability

Max. 10 Tons

Decoiler type

Manual / Hydraulic/Automatic

Feeding & Leveling

Pinch feeding

3?Units ( 6 Rollers )

Leveling

7 Rollers ( Upper 3 Rollers, Bottom 4 Rollers )

Punching device

Punching ?motion

Hydraulic Punching, Post-punching

Punching dies

Cr12 Mov Steel, HRC58-62

Punching?? station

?1-2 Unites ( depend on hole patterns )

Punching in longitude controlled by PLC, punching at horizontal adjusted by manual hand wheel.

Cutting device

Cutting motion

Hydraulic Cutting, post-Cutting ( cutting sheet after forming )

Cutting blades

Cr12Mov with heat treatment HRC58-62

Length Measuring

Automatic length measuring by encoder & PLC.

Cutting Tolerance

1.5mm(per 3m)

Roll Forming?Machine

Forming Stations

17?Stations

Rectifying

1 unit

Roller material

GCr15 steel, heat treatment

Diameter of shaft

80mm

Shaft material

High grade 45# steel

Drive type

Chains

Forming speed

0-15m/min

Main power

22KW(11kw*2)

Servo motor

2 Units

Electrical control

PLC

PANASONIC Brand or Custom-made

Inverter

YASKAWA Brand or Custom-made

Touch screen

MCGS Brand?or Custom-made

Operation type

Touch screen & Button

Hydraulic Station

Hydraulic station

Famous Chinese brand

Hydraulic power

30KW

Runout Table

Table type
