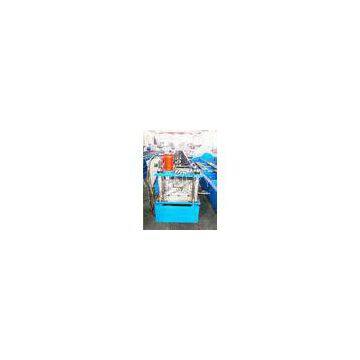

18.5KW Metal Purlin Roll Forming Machine C & Z Shape Purlin Forming Line

FOB Price

USD $35000$ - $60000$ / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ZOOY		Place of Origin	China
Model Number	ZO-Z300

Delivery Time:70 days after get 30% down payment
Certification:CE

Hydraulic Cutting 14 Station Steel Zee Purlin Roll Forming Machine With Hydraulic Cutting, 1.0 - 3.0mm ThicknessCorbon
?
?
Ⅰ:Composition of machine
?

?
?
Main Specifications ??
?

Coil Material?	Thickness	1.5-3.5mm ?
Coil width	Depend on customer’s requires
Yield Strength	250-350Mpa
Material	GI. Carbon Steel
Purlin Sizes	Web width	80-300mm
Height	40-80mm
Lip	15-25mm
Decoiler / Uncoiler	Coil Width????????????????	Max. 600mm
I.D	510-610mm
O.D	Max. 1300mm
Capability	Max. 5 Tons
Decoiler type	Manual / Hydraulic/Automatic
Feeding & Leveling	Pinch feeding	3?Units ( 6 Rollers )
Leveling	7 Rollers ( Upper 3 Rollers, Bottom 4 Rollers )
Punching device	Punching ?motion	Hydraulic Punching, pre-punching
Punching dies	Cr12 Mov Steel, HRC58-62
Punching?? station	?1-6 Unites ( depend on hole patterns )
Punching in longitude controlled by PLC, punching at horizontal adjusted by manual hand wheel.
Cutting device	Cutting motion	Hydraulic Cutting, post-Cutting ( cutting sheet after forming )
Cutting blades	Cr12Mov with heat treatment HRC58-62
Length Measuring	Automatic length measuring by encoder & PLC.
Cutting Tolerance	1.5mm(per 3m)
Roll Forming?Machine	Forming Stations	17Stations
Rectifying	1 unit
Roller material	GCr15 steel, heat treatment
Diameter of shaft	80mm
Shaft material	High grade 45# steel
Drive type	Chains
Forming speed	0-15m/min
Main power	18.5KW
Servo motor	2 Units
Electrical control	PLC	PANASONIC Brand or Custom-made
Inverter	YASKAWA Brand or Custom-made
Touch screen	MCGS Brand?or Custom-made
Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Hydraulic power	11KW
Runout Table	Table type	Simple non-power type
Function	To support the finished panels
TOTAL WEIGHT	?	APRRO 12 TONS

?
?
Main Products
?

1	PU sandwich panel production line
2	Purlin Roll Forming Machine
3	Steel Silo Roll Forming Machine
4	Gutter machines and downspout machines
5	Metal roofing /decking/cladding roll forming machines
6	Roof tile roll forming machines
7	Door & window frame roll forming machin
