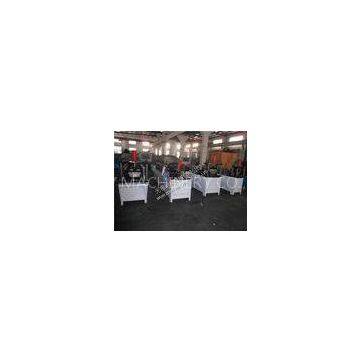

Furring Channel / Hat Section / Angles Cold Roll Forming Machine 0-20m/min
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Automatic galvanized steel stud roll forming machine Thickness 0.3 - 1.5mm
-
Omega Sheet Stud And Track Roll Forming Machine For Furring Profiles
-
Full - Automatic Furring Stud And Track Roll Forming Machine with Following Ctting
-
High Speed Durable Steel Cold Roll Forming Equipment For C / Z Purlin 0-15m/min
-
Durable steel Cee / Zee Purlin Roll Forming Machine With Full - Control System
-
Automatic metal Roof Tile Roll Forming Machine cold roll forming equipment
Product Details
| Brand Name | ZOOY | Place of Origin | China | |
| Model Number | ZO-SD |
Product Description
Certification:CE
Furring Channel, Hat Section, Angles Roll Foming Machine For 0.4mm - 1.5mm Thickness
Quick Detail
Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss,hat section, angles......
Our main products include PU sandwich panel production line, PURLIN ROLL FORMING MACHINE, STEEL SILO ROLL FORMING MACHINE, guardrail roll forming machines , metal roofing /decking/cladding roll forming machines , roof tile roll forming machines ,door & window frame roll forming machines , guide rail roll forming machines, upright post roll formers, gutter machines and downspout machines , T-bar forming machines , stud and track forming machines, cable tray roll forming machines, roller shutter manufacturing lines and so on.
Description
|
Roll forming main machine |
1 unit |
|
5 TONS Un-coiler |
1 unit |
|
PLC Control panel |
2 unit |
|
Hydraulic station |
1 unit |
|
cutting & Punching device |
1 unit |
|
Safety cover device |
1 unit |
|
Manual out table |
2 unit |
Main Specifications ??
?
|
Coil Material? |
Thickness |
0.4-1.5 mm ? ? ? ? ? ? ? ? ? ? ? ? ? ? |
|
Coil width |
Depend on customer’s requires |
|
|
Yield Strength |
250-550Mpa |
|
|
Material |
Color steel, ?galvanized steel, G.I ? ? ? ? |
|
|
Decoiler / Uncoiler |
Coil Width????????????????????????????? |
Max. 1000mm |
|
I.D |
510-610mm |
|
|
O.D |
Max. 1200mm |
|
|
Capability |
Max. 5Tons |
|
|
Decoiler type |
Manual / Hydraulic/Automatic |
|
|
Feeding & guiding |
Pinch feeding |
1?Units ( 2 Rollers ) |
|
guiding |
2 Rollers |
|
|
Cutting device |
Cutting motion |
Hydraulic Cutting, following -Cutting ( cutting sheet after forming ) |
|
Cutting blades |
Cr12Mov with heat treatment HRC58-62 |
|
|
Length Measuring |
Automatic length measuring by encoder & PLC. |
|
|
Cutting Tolerance |
1.5mm(per 3m) |
|
|
Roll Forming?Machine |
Forming Stations |
ABOUT 8-10 steps |
| ? | ||
|
Roller material |
45# steel, heat treatment??????? |
|
|
Diameter of shaft |
65mm |
|
|
Shaft material |
High grade 45# steel |
|
|
Drive type |
Driven by motor, transmit by chain |
|
|
Forming speed |
0-20m/min |
|
|
Main power |
7.5kw |
|
| ? | ||
|
Electrical control |
PLC |
PANASONIC Brand or Custom-made |
|
Inverter |
YASKAWA Brand or Custom-made |
|
|
Touch screen |
MCGS Brand?or Custom-made |
|
|
Operation type |
Touch screen & Button |
|
|
Hydraulic Station |
Hydraulic station |
Famous Chinese brand |
|
Hydraulic power |
5.5KW |
|
|
Runout Table |
Table type |
Simple no |
