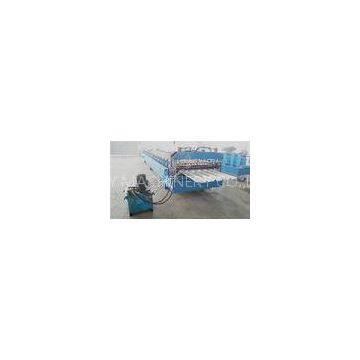

11KW Trapezoidal Roof Panel Roll Forming Machine Roof Tile Making Equipment

FOB Price

USD $20000$ - $60000$ / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ZOOY		Place of Origin	China
Model Number	ZO-RF1200

Product Description

Delivery Time:60days after get 30% down payment
Certification:CE

11KW Trapezoidal Roof Panel Roll Forming Machine With Pre - Cutting , 0.3 - 0.8mm Thickness?

Description

Our main products include PU sandwich panel production line, PURLIN ROLL FORMING MACHINE, STEEL SILO ROLL FORMING MACHINE, guardrail roll forming machines , metal roofing /decking/cladding roll forming machines , roof tile roll forming machines ,door & window frame roll forming machines , guide rail roll forming machines, upright post roll formers, gutter machines and downspout machines , T-bar forming machines , stud and track forming machines, cable tray roll forming machines, roller shutter manufacturing lines and so on.?
?

Main Specifications ??
?

Coil Material?	Thickness	0.3-0.8mm ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
Coil width	Depend on customer’s requires
Yield Strength	250-550Mpa
Material	PPGI, Color Steel, GI. Aluminium ? ? ? ?
Decoiler / Uncoiler	Coil Width??????????????????????????????	Max. 1000mm
I.D	510-610mm
O.D	Max. 1220mm
Capability	Max. 5Tons
Decoiler type	Manual / Hydraulic/Automatic
Feeding & guiding	Pinch feeding	1?Units ( 2 Rollers )
guiding	2 Rollers
Cutting device	Cutting motion	Hydraulic Cutting, post-Cutting ( cutting sheet after forming )
Cutting blades	Cr12Mov with heat treatment HRC58-62
Length Measuring	Automatic length measuring by encoder & PLC.
Cutting Tolerance	1.5mm(per 3m)
Roll Forming?Machine	Forming Stations	ABOUT 18 steps
?
Roller material	45# steel, heat treatment????????
Diameter of shaft	76mm
Shaft material	High grade 45# steel
Drive type	1.2 inch double line Chains
Forming speed ?	0-15m/min
Main power	7.5kw
?
Electrical control	PLC	PANASONIC Brand or Custom-made
Inverter	YASKAWA Brand or Custom-made
Touch screen	MCGS Brand?or Custom-made
Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Hydraulic power	5.5KW
Runout Table	Table type	Simple non-power type
Function	To support the finished panels
?WEIGHT		APRRO 5 TONS

??
The type pursues board (basis on customer\'s requires to design)??????
?

Our Advantage?

High Quality Reasonable Price Good after Service 1 Year Warranty More Than 10 Years Experience

.
Warranty: 1 year warranty from date of shipment
Guarantee:
1:Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2:Reparis will not be performed free of change even during the guarantee period in the follow circumstances
-? damage occurs due to a natural disaster
- ?malfunction occurs due t
