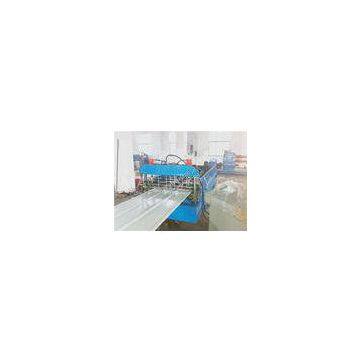

Color Steel Corrugated Roofing Wall Panel Roll Forming Machine With PLC Control

FOB Price

US$ 10000$ - 40000$ / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ZOOY		Place of Origin	China
Model Number	ZO-RF1200

Product Description

Delivery Time:45days after get 30% down payment
Certification:CE

Standard Corrugated Roofing? Roll Forming Machine With PLC Control, 5.5KW Hydraulic Cutting

Description

Roller Forming Machine -------------1 unit 5 tons decoiler------------------------1 unit PLC Control Panel---------------------1 unit Hydraulic station----------------------1 unit Post-Cutting---------------------------1 unit Motor Power---------------------------1 unit Out-table-----------------------------2 pics Safety Cover-------------------------1 unit

Main Specifications ??
?

Coil Material?	Thickness	0.3-0.8mm ? ? ? ? ? ? ? ? ? ? ?
Coil width	Depend on customer’s requires
Yield Strength	250-550Mpa
Material	PPGI, Color Steel, GI. Aluminium
Decoiler / Uncoiler	Coil Width??????????????????????????	Max. 1000mm
I.D	510-610mm
O.D	Max. 1200mm
Capability	Max. 5tons
Decoiler type	Manual / Hydraulic/Automatic
Feeding & guiding	Pinch feeding	1?Units ( 2 Rollers )
guiding	2 Rollers
Cutting device	Cutting motion	Hydraulic Cutting, post-Cutting ( cutting sheet after forming )
Cutting blades	Cr12Mov with heat treatment HRC58-62
Length Measuring	Automatic length measuring by encoder & PLC.
Cutting Tolerance	1.5mm(per 3m)
Roll Forming?Machine	Forming Stations	ABOUT 18-20steps
?
Roller material	45# steel, heat treatment????
Diameter of shaft	75mm
Shaft material	High grade 45# steel
Drive type	Driven by Motor,transmission by Chains
Forming speed	0-15m/min
Main power	7.5kw
?
Electrical control	PLC	PANASONIC Brand or Custom-made
Inverter	YASKAWA Brand or Custom-made
Touch screen	MCGS Brand?or Custom-made
Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Hydraulic power	5.5KW
Runout Table	Table type	Simple non-power type
Function	To support the finished panels
?WEIGHT		APRRO?5 TONS

??
The type pursues board (basis on customer\'s requires to design)??????
?

Our Advantage?

Stationary style Affordable High Quality Reliable Durable Reasonable Price Good after Service 1 Year Warranty More Than 10Years Experience

.
Warranty: 1 year warranty from date of shipment
Guarantee:
1:Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2:Reparis will not be performed free of change even during the guarantee period in the follow circumstances
-? damage occurs due to a natural disaster
- ?malfunction occurs due to user error
-? malfunction occurs due to modifications
-? malfunction occurs due to further movement or shipment after installation
3:Air t
