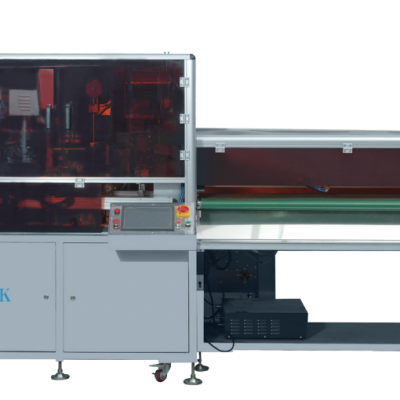

Full-auto intelligent metal zipper open end cutting,slider mounting,U top stop 3 in 1 machine

Full-auto intelligent metal zipper open end cutting,slider mounting,U top stop 3 in 1 (with AI visual quality inspection system)

Product advantage

1.The machine is used for 3 processes of metal open end zipper cutting,slider mounting and U top stop,

the three processes are completed by one machine,occupies an area of less,per capita can operate multiples sets of machines,high efficiency.

2.The machine imitates of manual ultrasonic cutting, slider and U top stop by several groups of manipulators.It adpots the full servo motor module,which is easy to operate, and the machine has strong stability, and the defective rate of the products is low.

3.Cutting part of the ultrasonic cutting,washing performance is good,cutt of the surface is not white, not hairy.

4.The slider mounting part of the first cut off after the robot simulation of human hand and then slider mounting to slove the pull slider mounting of the transparent film white and deformation of the problem,as well as with the cord thichening of the problem of hard to mount the slider,Gapping size 3 cm can work.

5.The slider mounting parts adopts side push zipper structure,and the fancy puller has strong versatility.

6.The top stop part adopts rotating head pushing and clamping structure, the top stop particle fixed position is stable,low defective rate.The display can be set whether the top stop position is a flat top stop pr a high and low top stop.

6.AI visual inspection quality system can be added,which can identify the logo if the slider and the defect of the top stop,and separate the defective products and good products for discharge.

Model:KKK-3M

Power:5.5KW

Volt:220V

Frequency:50/60HZ

Net weight:710KGS

Gross weight:880KGS

Average output:720PCS/H

Machine size:240*120*175cm

Packing size:200*120*200cm
