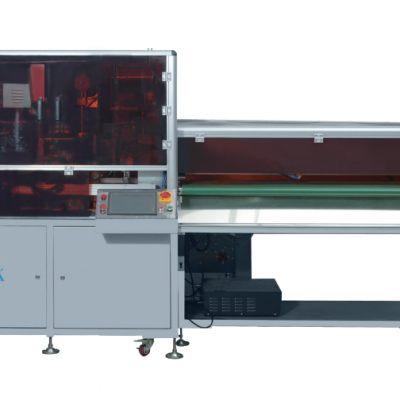

Full-auto electric nylon open end cutting,slider mounting,U top stop intelligent 3 in 1 (With AI visual quality inspection system)

Product advantage

1.The machine is used for 3 processes of nylon zipper cutting,slider mounting and U top stop,

the three processes are completed by one machine,occupies an area of less,per capita can operate multiples sets of machines,high efficiency.

2.The machine imitates of manual ultrasonic cutting, slider and U top stop welding by several sets of manipulators,

adopting full servo motor module, easy to operate,strong stability of the machine and low defectives rate of the products

3.Cutting part of the ultrasonic cutting,washing performance is good,cutt of the surface is not white, not hairy.

4.The slider mounting parts adopts side push zipper structure,and the fancy puller has strong versatility.

5.U shaped top stop part adopts single weleding horn and double bottom mould structure, one side top stop is adjustable.

6.AI visual inspection quality system can be added,which can identify the logo if the slider and the defect of the top stop,and separate the defective products and good products for discharge.

Model:KKK-3N

Power:4.5KW

Volt:220V

Frequency:50/60HZ

Net weight:700KGS

Gross weight:860KGS

Average output:720PCS/H

Machine size:250*100*185cm

Packing size:265*115*190cm
