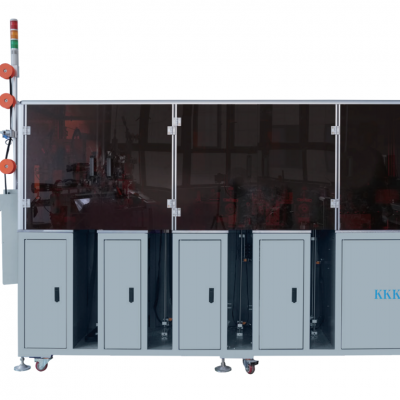

Full-auto electric nylon gapping,teeth welding,film sealing,hole punch,pin box intelligent 5 in 1 machine(With AI visual quality inspection system)

KKK-5N

Full-auto electric nylon gapping,teeth welding,film sealing,hole punch,pin box intelligent 5 in 1 machine(With AI visual quality inspection system)

Product advantage

1.The machine is used for 5 processes of nylon zipper,such as gapping,welding teeth,film sealing,punching,and pin box etc.It integrated 5 processes into one,

occupies less floor space,and can be operated by many sets of machines per person,with high efficiency per person.

2.The series connection between the production processes is relatively compact, avoiding the emergence of defective products in the production process due to zipper stacking.

3.The gapping part adopts the design of the three-blade knife,which is 100% free of repairing teeth,and there is no half tooth in the gapping,and the high and low teeth are the same.

4.The welding teeth part fixes of both ends of the zipper to ensure that slider work smoothly and no displacement of the U top stop.The function of welding cord effectively improves the flat pulling strength of pin box.

5.The film sealing part of the transparent tape and taffeta universal, with strong washing performance, installed real-time temperature monitoring, to avoid burnt film.

6.Punching using ultrasonic,good washing performance.

7.The pin box part adopts the process of pressing and then hitting,with beautiful appearance and high strength.

8.AI visual inspection quality system can be added to identify the appearance of the film, the location of the pin box and the bad eye of the pin, and mark the defective products.

Model:KKK-5N

Power:4.4KW

Volt:220V

Frequency:50/60HZ

Net weight:1200KGS

Gross weight:1380KGS

Average output:1000PCS/H

Machine size:230*60*180cm

Packing size:250*80*200cm
