Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | JCC-105 | Type | Other |
Product Description

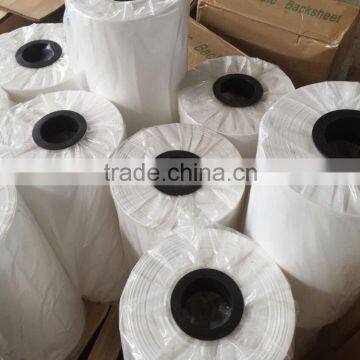

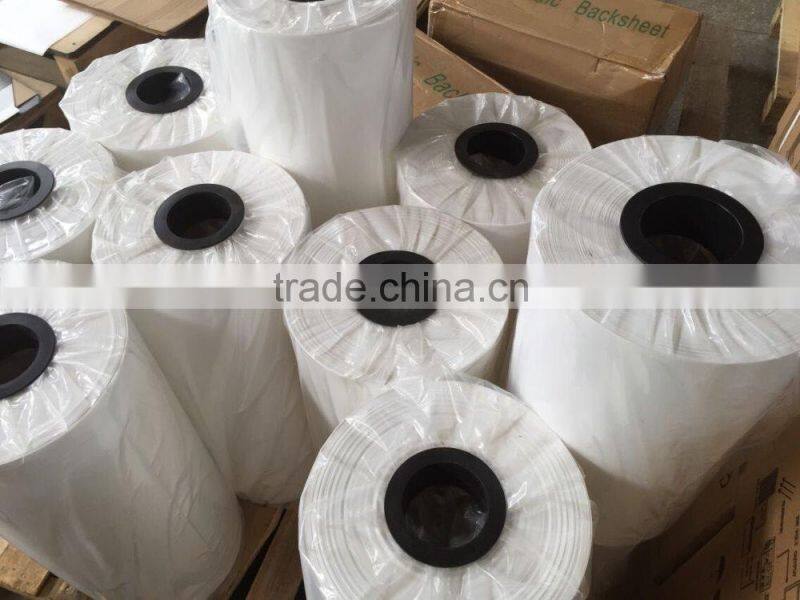

EVA Film for solar panel manufacturing
EVA film characters:
- 1. Excellent durability
- 2. Weather resistance
- 3. High-temperature and high-humidity resistance
- 4. UV light resistance
- 5. Excellent adhesion to glass
- 6. TPT maintaining long term adhesion
- 7. Excellent light transmittance and transparency
- 8. Inactive and harmless in solar cells during processing
- 9. High crosslinking rate after lamination
- 10. Good encapsulating properties
- 11. Good matching with different backsheet and other materials

Size:
- 1,Thickness 0.3mm—0.35, 0.4, 0.45, 0.5
- 2,Width,Max: 1000mm
- 3,Length,100m/roll
Storage and life time:
- 1,T≤30°C,H≤70%
- 2,Shift time is 6 monthes
- 3,All open carton EVA film must be used up within 24hours and avoid it absorb some dust and water
NO | Project | Technical index | Unit | Note |
1 | Storage temperature | 0-30 | ℃ | Too high temperature can cause gum surface adhesion even accepting the cross linking |
2 | Storage humidity | Storage temperature | % | Poor save may cause it full of moisture to produce bubble |
3 | Storage condition | keep in dark place | / | ray of light may cause the additives lose efficacy and even make it yellow |
4 | Storage Conditions | Away from the heating equipment, dust, oil pollution; fire |
| Cause the change of the products’ quantity |
5 | Open deadline | no more than 6 months |
| Suggest finish it before 48 hours |
6 | service life | Have the relevant international certification Suggest for 25 years | Year | Have passed the high temperature, high humidity, 1000 h test |

| Holly Song
NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, China Zip.226400 Mobile number: +86 187 5282 7203 Tel: +86 513 8410 5399 Fax: +86 513 8410 5505 Skype: reooholly What'App:+0086 187 5282 7203
|
