Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-2 | Type | Adapter | |
| Application | Power | Gender | Other, Male and Female |
Product Description

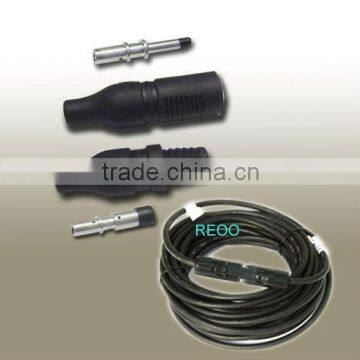

Solar power cable connector
The advantage of REOO Solar connecto
PV solar connectors is a kind of pluggable connectors for PV module, with quick assembly, easy handling and high conductivity connection.

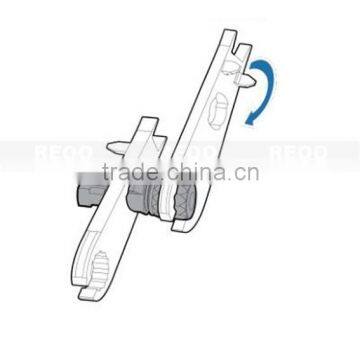

The PV solar connectors can easily be connected cables or junction boxes by using a multifunctional tool specifically developed for these connectors in usage with our junction boxes and cables, it’s a safety connection system for Photovoltaic
Item | RO-2 solar PV cable connector |
Compatible: | MC3 Solar connector |
Insulation material: | TPE/PA |
Rated current : | 25A |
Rated voltage: | 1000V |
Test voltage : | 6000V(50Hz,1Min) |
Contact material : | Copper Tin plated |
Contact resistance: | 5mΩ |
Degree of protection : | IP65 |
Safety class: | 2 |
Flame class: | UL94-V0 |
Insertion force : | ≤50N |
Withdrawal force : | ≥50N |
Ambient temperature range : | -40 degree to +90 degree |
Connector diameter : | 4mm |
Compatible cable cross sections : | solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : | 2.5-6.0mm2 AWG 14/12/10 |
Be used for: | Connecting solar PV cable |
characteristic | High insulation, Fast integration |
REOO Connector use PC raw material, It is top quality.

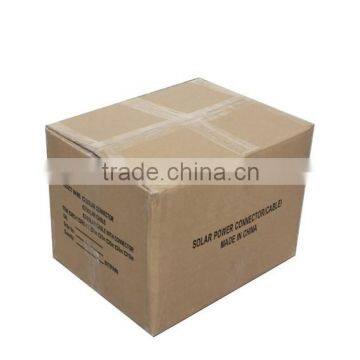

Male house | 100 pic /PE bag. 10 bag/carton, also 1000 Pin |
Female house | 100 pic /PE bag. 10 bag/carton, also 1000 Pin |
Measure | 380*290*470 mm/ carton |
Net weight | 34 kg / carton |
Gross weight | 35.5 kg / carton |
