Home > Products > Solar Connector & cable > REOO 2016 MC4 TUV certified solar cable connector with crimping tools and spanner Quality Choice
REOO 2016 MC4 TUV certified solar cable connector with crimping tools and spanner Quality Choice
- Shanghai
You May Like
-
MC4 solar panel mount connector waterproof IP67 for panel mount PA insulated
-
MC4 solar panel mounting Connector,MC4 install mount solar kit connect
-
MC4 REOO solar panel connector with diode,Male and Female Plug,Waterproof connectors
Quality Choice
-
MC4T Solar connector for 4 mm2 or 6 mm2 cable from China supplier REOO
-
MC4 Solar System Electronic Connector good quality from REOO
-
MC4 compatible solar connector for or 2.5 / 4 / 6 mm2 photovoltaic cable
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-1 ( MC4) | Type | Other, PV | |
| Application | Other, Solar power system | Gender | Other, Male & Female |
Product Description

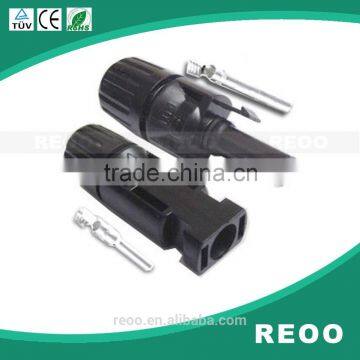

MC4 Solar power cable connector
The advantage of REOO Solar connector
1, Polycarbonate raw material, Not PPO.
2, Ultrasonic hot melting , Most company use fixing clip.
3, Manufacturer price.
Item | RO-1 solar cable connector |
Compatible: | MC4 solar connector |
Insulation material: | PC |
Rated current : | 30A |
Rated voltage: | 1500V |
Test voltage : | 6000V(50Hz,1Min) |
Contact material : | Copper Tin plated |
Contact resistance: | 5mΩ |
Degree of protection : | IP67 |
Safety class: | 2 |
Flame class: | UL94-V0 |
Insertion force : | ≤50N |
Withdrawal force : | ≥50N |
Ambient temperature range : | -40 degree to +90 degree |
Connector diameter : | 4mm |
Compatible cable cross sections : | solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : | 2.5-6.0mm2 AWG 14/12/10 |
Be used for: | Connecting PV cable |
characteristic | High insulation,Big tension,Fast integration |
REOO Connector use PC raw material, It is top quality.
Package
Male house | 100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton |
Female house | 100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton |
Measure | 480*380*360 mm/carton |
Net weight | 34 kg / carton |
Gross weight | 35.5 kg / carton |
