IPC Insulation Piercing Connector NSPV IPC4116120
10 - 99 Pieces
100 - 499 Pieces
≥500 Pieces
- shenzhen
- T/T
- 25 days
You May Like
-
SCC ST4 UV Resistant Stainless Steel DC Wire Clip 1500V Cable Clips
-
DC1500V Solar Panel Wiring Harness Y Type 2 in 1 Cable Branch Without Connector
-
NSPV NSDF38 DC Fuse Holder 1000V for Solar PV System With 32A Fuse
-
Solar PV 1000V DC Cable Connector Compatible Type Plug Connectors
-
Cheap Solar PV 1000V DC Cable Connector Compatible Type Plug Connectors
-
Solar 1500V DC Smart Branch Wire 3 in 1 Cable Harness
Product Details
| Certification | CE | Application | Other, Solar Energy System | |
| Interface Type | AC/DC | Terminal Material | Copper | |
| Gender | Other, Solar system | Pin | 4 Pins | |
| Transport Package | Yes | Specification | Standard | |
| Trademark | NSPV | Origin | China |
Product Description
Best Quality Solar Conbiner box Hybrid Inverter AC connector 3P 5P

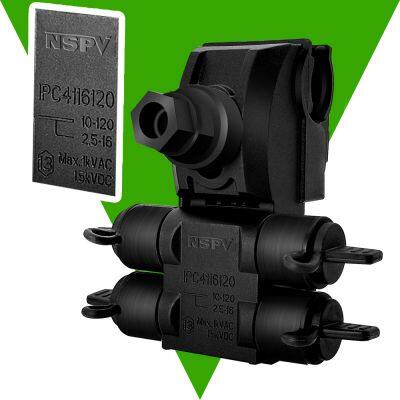

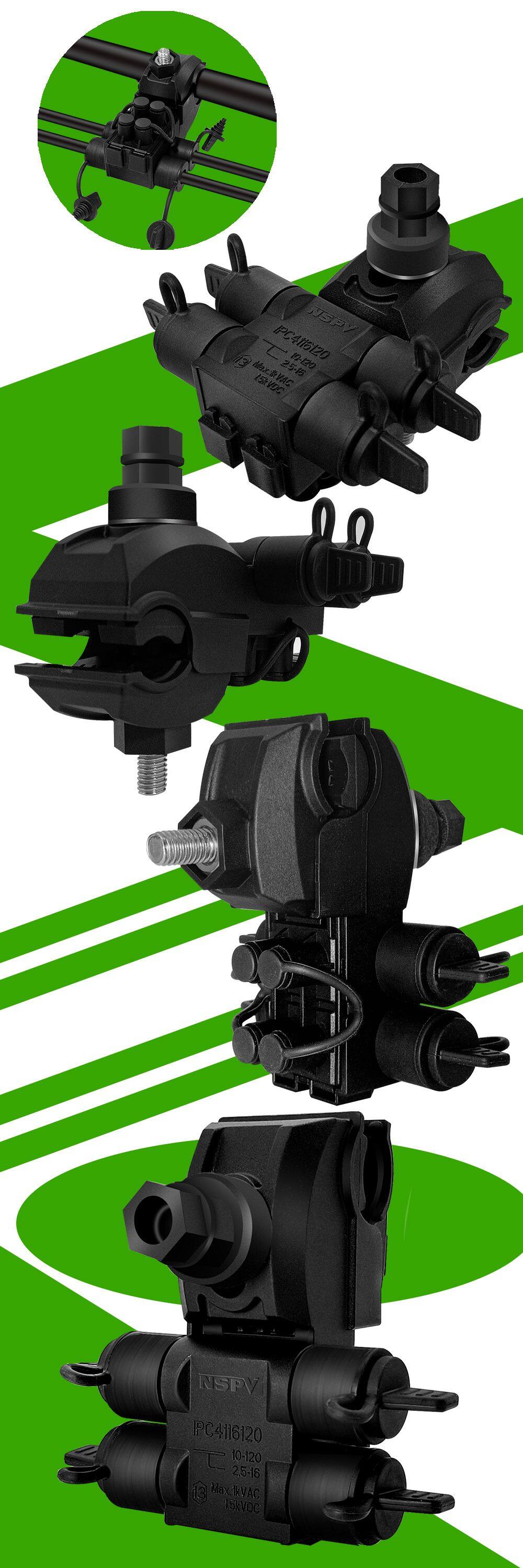

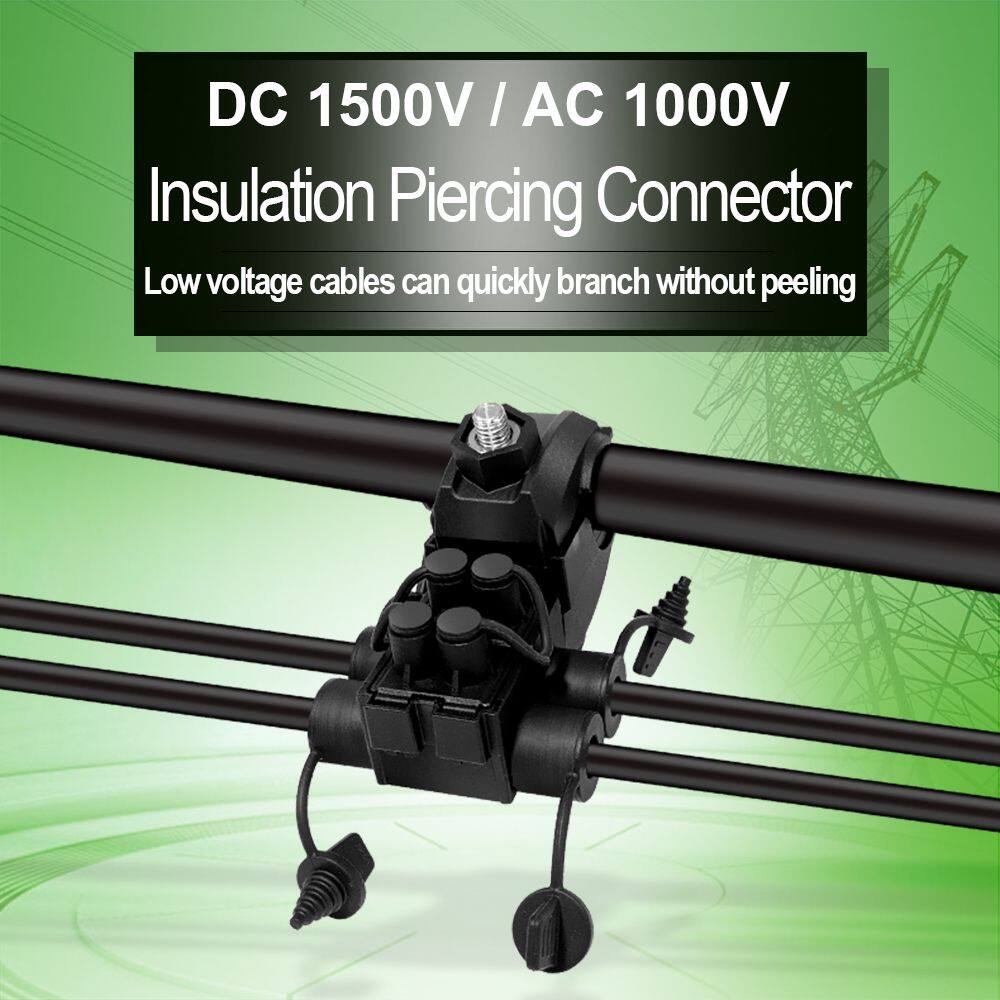

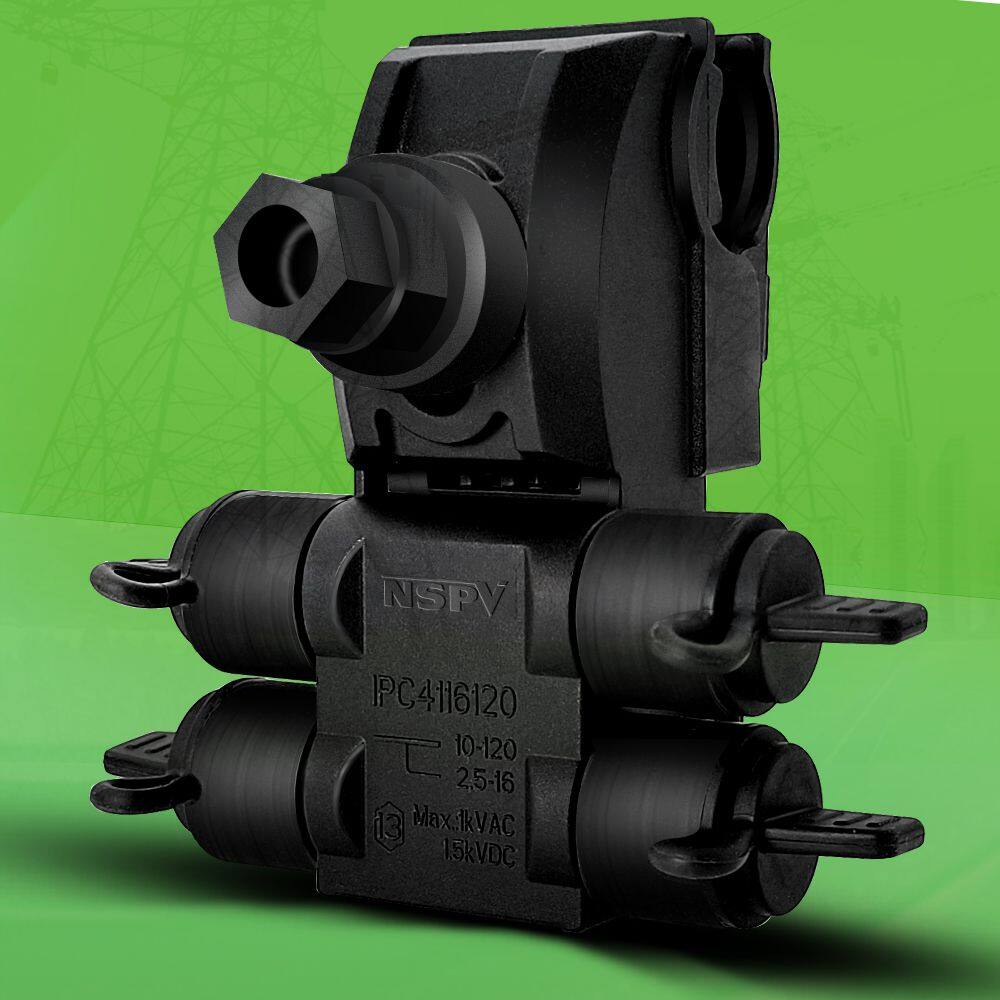

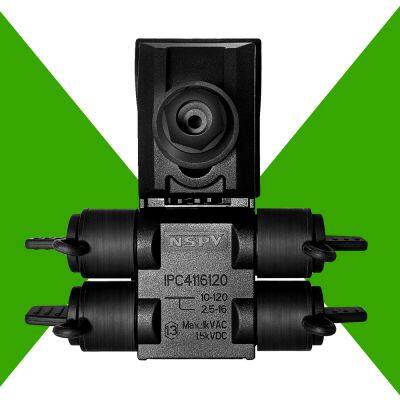

The NSPV IPC4116120 Insulation Piercing Connector (IPC) is a specialized connector designed for secure and reliable electrical branching in low-voltage power distribution and photovoltaic systems. This connector ensures efficient current tapping without the need to strip insulation from the main conductor, simplifying installation and reducing labor time. It is widely used in solar PV arrays, street lighting systems, overhead line connections, and secondary distribution networks.

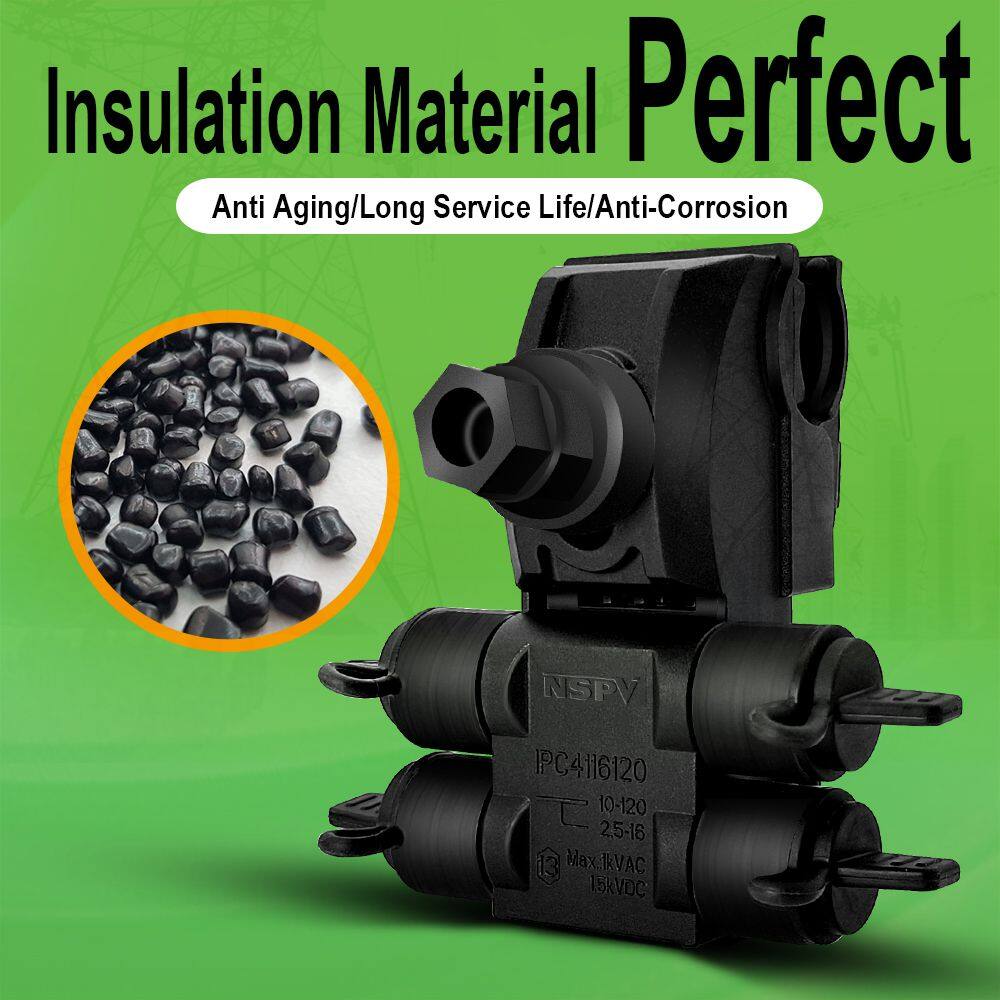

Manufactured by NSPV with high-performance engineering plastic and anti-corrosion components, the IPC4116120 provides excellent electrical conductivity, mechanical strength, and weather resistance. The connector features a shear-head torque bolt that guarantees optimal contact pressure without over-tightening, ensuring consistent and safe performance over time.

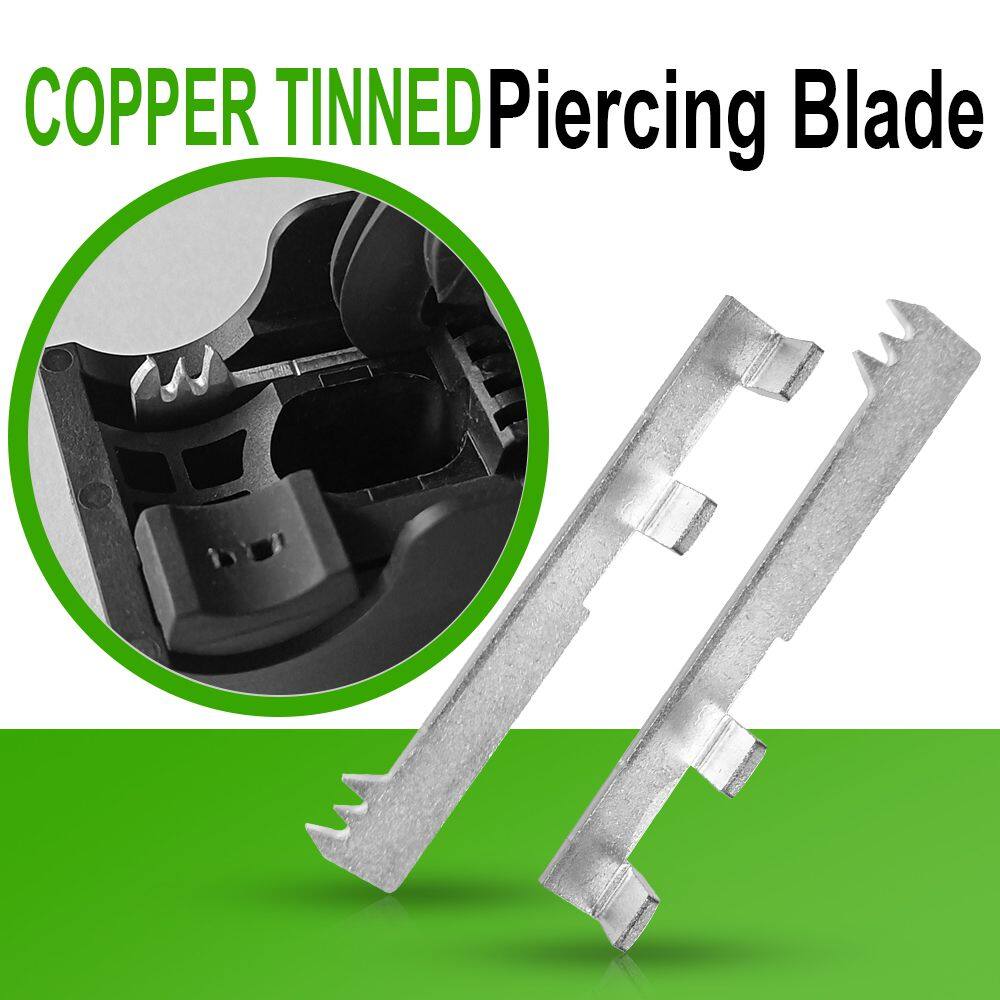

Insulation Piercing Connector's teeth are made of tinned copper or aluminum alloy, enabling strong contact through the conductor's insulation. The IPC4116120 supports a wide range of conductor sizes, making it versatile for different cable configurations, including copper and aluminum cores.
Designed to meet international electrical and safety standards, this insulation piercing connector is water-resistant (IPX7/IPX8 rated when sealed properly), UV-resistant, and compatible with cable types used in solar and utility applications. It requires no special tools, making it ideal for field installations and maintenance.
Technical Specification Table
| Item | Parameter |
|---|---|
| Model | IPC4116120 |
| Brand | NSPV |
| Type | Insulation Piercing Connector (IPC) |
| Main Conductor Range | 16–120 mm2 (Copper/Aluminum) |
| Branch Conductor Range | 4–50 mm2 (Copper/Aluminum) |
| Bolt Type | Single torque-control shear-head bolt |
| Rated Voltage | ≤ 1kV (AC), 1.5kV (DC) |
| Rated Current | Up to 200A (depending on cable size) |
| Piercing Element | Hardened tinned copper/aluminum alloy teeth |
| Housing Material | UV-resistant glass-fiber reinforced thermoplastic |
| Seal Type | Rubber sealing for waterproof protection |
| Protection Class | IPX7/IPX8 (with sealed caps) |
| Flame Retardant | Yes |
| Operating Temperature | -40°C to +90°C |
| Standards Compliance | EN 50483-4, IEC 61238-1 |
| Installation Tool | Standard wrench (no stripping required) |
| Application | Solar PV, Overhead lines, Utility distribution |
Key Features:
Quick and tool-free piercing connection
Compatible with insulated aluminum and copper cables
Secure waterproof and corrosion-resistant performance
UV-resistant material ideal for outdoor and solar applications
Automatic torque-limiting shear bolt prevents overtightening
Contact Us
