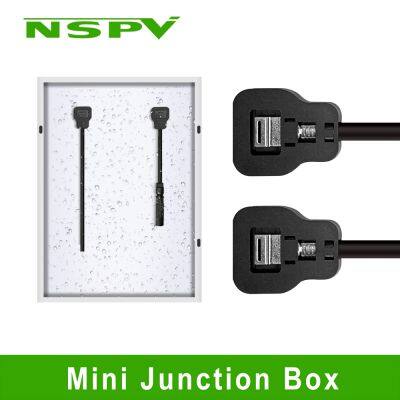

Wholesales NSPV MLJ-01 connector Solar PV Panel Mini Junction Box

The NSPV MLJ-01 Solar PV Panel Mini Junction Box is a high-performance, compact electrical component designed to optimize the safety, durability, and efficiency of solar photovoltaic (PV) systems. Engineered for seamless integration with solar panels, this junction box ensures reliable connectivity, robust protection against environmental hazards, and long-term operational stability. Below is a detailed breakdown of its features, materials, and applications.

1. Premium Material: 100% Brand-New Imported PPE

The MLJ-01 junction box is constructed using 100% brand-new imported PPE (Polyphenylene Ether), a high-grade engineering thermoplastic renowned for its exceptional thermal, mechanical, and electrical properties. PPE offers:

• Superior Heat Resistance: Withstands temperatures up to 120°C, ensuring stability in high-heat environments typical of solar installations.

• Flame Retardancy: Complies with stringent fire safety standards (e.g., UL94 V-0), preventing flame propagation and minimizing fire risks.

• Chemical & UV Resistance: Resists degradation from UV exposure, moisture, and harsh chemicals, extending the product’s lifespan.

2. IP68 Waterproof Protection

The MLJ-01 achieves an IP68 protection rating, the highest ingress protection standard for dust and water resistance. Key advantages include:

• Complete Dustproofing: Sealed design prevents particulate ingress, critical for installations in arid or dusty regions.

• Submersion Resistance: Survives immersion in water up to 1.5 meters deep for 30 minutes, ideal for flood-prone areas or marine applications.

• Weatherproof Performance: Protects internal diodes and connections from rain, snow, and humidity, ensuring uninterrupted power output.

3. Advanced Safety & Durability Features

• Flame-Resistant Housing: The PPE material’s self-extinguishing properties reduce fire hazards, even during electrical faults.

• High-Quality Diodes: Integrated bypass diodes prevent hot spots and optimize panel efficiency by managing current flow during shading or cell failure.

• Corrosion-Resistant Terminals: Tinned copper terminals resist oxidation, ensuring low-resistance connections over decades.

4. Compact & User-Friendly Design

• Space-Efficient: Miniaturized dimensions (e.g., 80mm x 40mm x 25mm) make it compatible with most residential and commercial solar panels.

• Easy Installation: Pre-installed cables or solderless connectors enable plug-and-play assembly, reducing labor time.

• Heat Dissipation: Ventilation channels and thermal management design prevent overheating, enhancing component reliability.

5. Applications

The MLJ-01 is ideal for:

• Residential Rooftop Systems: Ensures safety and longevity for home solar arrays.

• Commercial & Industrial Projects: Withstands demanding environments like factories or solar farms.

• Off-Grid Installations: Reliable performance in remote or harsh locations (e.g., deserts, coastal areas).

6. Quality Assurance

Every MLJ-01 junction box undergoes rigorous testing to meet IEC 62790 and UL 6703 standards for solar connectors. It is backed by a 10-year warranty, reflecting confidence in its performance and durability.

Conclusion

The NSPV MLJ-01 Solar PV Panel Mini Junction Box combines cutting-edge materials, unmatched protection, and intelligent design to deliver a critical component for modern solar energy systems. Its IP68 waterproofing, flame-resistant PPE construction, and compact form factor make it a top choice for installers seeking reliability, safety, and ease of use. By integrating this junction box, users can safeguard their PV investments while maximizing energy harvest in diverse environmental conditions.
