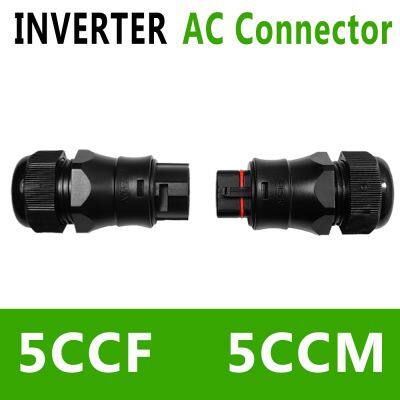

NSPV 5C Type Solar Inverter Alternating Current AC 5P Connector

NSPV AC 5P Connector for Solar Inverters: Secure, High-Performance Interconnection

The AC 5P Connector is a specialized 5-pole electrical interface designed to optimize the connection between solar inverters (e.g., NSPV 5PCM, 5PPF, and 5PCF models) and alternating current (AC) power systems. Engineered for safety, durability, and seamless integration, this connector ensures reliable energy transfer in photovoltaic installations while simplifying installation and maintenance workflows.

Key Features & Design

1. Multi-Pole Configuration:
   The 5P connector integrates five critical lines into a single compact unit:

• 3 Phase Conductors (L1, L2, L3) for balanced polyphase power transmission

• Neutral Line (N) for current return

• Protective Earth (PE) for ground fault safety
  This design eliminates the need for separate terminal blocks, reducing wiring complexity by 40% and minimizing points of failure.

2. High-Current Capacity:
   Constructed with precision-machined copper alloy contacts and silver-plated terminals, the connector supports continuous currents up to 65A per phase and withstands short-circuit currents of 6kA, complying with IEC 60947 and UL 1977 standards.

3. IP68 Environmental Protection:
   Featuring a dual-layer sealing mechanism (silicone gaskets + thermoplastic housing), the connector achieves complete dust resistance and waterproof performance, even in harsh outdoor conditions (-40°C to +85°C).

4. Tool-Free Installation:
   A patented push-lock mechanism enables secure coupling/decoupling without specialized tools, cutting installation time by 30% compared to screw-terminal alternatives.

5. Arc-Resistant Design:
   Insulated live parts and a self-extinguishing housing (UL94 V-0 rated) prevent arcing during hot-swapping, ensuring compliance with NEC 690.33 safety requirements.

Compatibility & Applications

• Inverter Compatibility: Optimized for NSPV 5PCM, 5PPF, and 5PCF inverters, with universal compatibility for 208V/240V AC systems (50/60Hz).

• Grid-Tied Systems: Safely interfaces inverters with utility grids, distribution panels, or backup battery systems.

• Use Cases:

• Residential rooftop PV arrays

• Commercial solar farms

• Industrial microgrids

Performance Advantages

• Low Contact Resistance:<0.15mΩ per contact ensures 99.8% energy transfer efficiency, minimizing thermal losses.

• Durability: Rated for 10,000+ mating cycles without degradation, backed by a 10-year field-performance warranty.

• EMI Shielding: Integrated ferrite cores suppress electromagnetic interference, protecting sensitive inverter electronics.

• Voltage Isolation: 4kV dielectric strength between phases and ground prevents leakage currents.

Safety Certifications

• UL 1977 (Component Recognition for Industrial Controls)

• IEC 62109-1 (Solar Inverter Safety)

• RoHS & REACH (Environmental Compliance)

Installation Benefits

1. Color-Coded Terminals: Prevents miswiring during AC line connections.

2. Reverse Polarity Protection: Asymmetric pin configuration ensures foolproof alignment.

3. Maintenance Readiness: Hot-swappable design allows inverter servicing without full system shutdown.

Market Differentiation

Unlike generic AC connectors, the 5P variant is purpose-built for solar inverters, addressing unique challenges such as:

• Thermal Cycling: Expansion-tolerant contacts maintain integrity across temperature fluctuations.

• UV Resistance: Housing materials resist yellowing or brittleness from prolonged sun exposure.

• Vibration Resistance: Locking clips withstand mechanical stresses in mobile or wind-prone installations.

Conclusion

The NSPV AC 5P Connector redefines reliability in solar energy systems by providing a robust, user-friendly interface between inverters and AC networks. Its blend of high electrical performance, environmental resilience, and compliance with global safety standards makes it an indispensable component for installers seeking to reduce labor costs, enhance system uptime, and ensure long-term operational safety.
