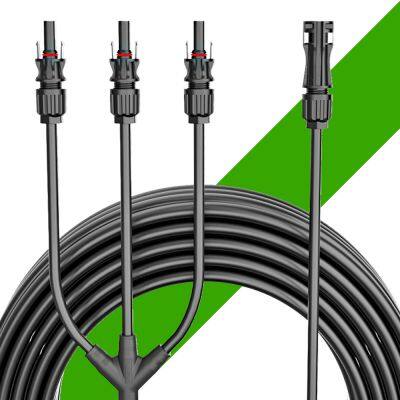

Solar 1500V DC Smart branch wire 3 in 1 cable harness

Solar PV Panel 1500V DC Smart Branch Wire 3-in-1 Cable Harness: Technical Overview

The 1500V DC Smart Branch Wire 3-in-1 Cable Harness is an advanced interconnect solution designed for modern utility-scale and commercial photovoltaic (PV) systems. This innovative harness integrates power transmission, communication, and intelligent monitoring capabilities into a single streamlined assembly, addressing the growing demand for efficiency, safety, and smart grid compatibility in solar installations. Below is a detailed breakdown of its design, functionality, and advantages.

1. Core Design and Components

• Triple-Function Integration: Combines positive, negative, and grounding conductors within a unified jacket, reducing cable clutter and installation complexity.

• Smart Monitoring Circuit: Embedded sensors and microcontrollers enable real-time monitoring of current, voltage, temperature, and fault detection (e.g., arc faults, insulation degradation).

• High-Voltage Compatibility: Rated for 1500V DC systems, complying with IEC 62930 and UL 4703 standards. This allows longer string configurations, minimizing power loss and balance-of-system (BOS) costs.

• Robust Materials:

• Conductors: Tinned copper strands for corrosion resistance and low impedance.

• Insulation: Cross-linked polyethylene (XLPE) for thermal stability (up to 120°C) and flame retardancy.

• Outer Sheath: UV-resistant, halogen-free polymer for outdoor durability.







2. Key Features

• Plug-and-Play Connectivity: Pre-terminated connectors (e.g., MC4-Evo2) ensure waterproof (IP68) and tool-free installation, reducing labor time by up to 40%.

• Data Communication: Integrated RS485 or power-line communication (PLC) lines transmit performance data to inverters or SCADA systems for predictive maintenance.

• Safety Enhancements:

• Arc-fault circuit interruption (AFCI) via embedded chips.

• Polarity reversal protection and surge suppression.

• Modular Design: Daisy-chainable branches support flexible string layouts, accommodating varying panel orientations and shading conditions.

3. Applications

• Utility-Scale Solar Farms: Optimizes large-scale deployments by reducing combiner box requirements and voltage drop over long distances.

• Commercial Rooftops: Space-efficient design simplifies installation in constrained environments.

• Floating PV Systems: Corrosion-resistant materials suit humid or marine conditions.

4. Benefits

• Cost Efficiency: Fewer cables and connectors lower material and labor expenses.

• Enhanced Reliability: Continuous monitoring minimizes downtime and fire risks.

• Scalability: Modular architecture supports system expansions without rewiring.

• Compliance: Meets NEC 2020, IEC 62446-1, and TüV Rheinland standards for grid integration.

5. Market Differentiation

Unlike traditional PV harnesses, this 3-in-1 solution merges power delivery with IoT-enabled diagnostics, positioning it as a future-proof choice for smart solar ecosystems. By consolidating functions and enabling data-driven management, it aligns with global trends toward digitalized, high-voltage PV systems.

In summary, the 1500V DC Smart Branch Wire 3-in-1 Harness represents a leap forward in solar infrastructure, combining engineering precision with intelligent functionality to maximize ROI and system lifespan. Its adoption is pivotal for projects prioritizing sustainability, safety, and operational agility.
