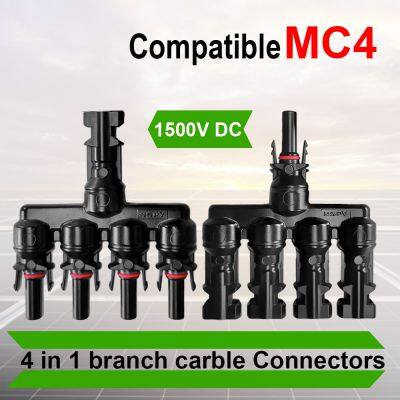

NSPV compatible MC flame Resistant Solar parallel Cable 4 in 1 Branch Connector

NSPV-Compatible MC Type Plug 1500V DC Solar Cable 4-in-1 Branch Connector: Powering Next-Generation Solar Systems

In the rapidly evolving solar energy industry, the demand for high-efficiency, durable, and safe interconnection solutions has grown exponentially. The NSPV-Compatible MC Type Plug 1500V DC Solar Cable 4-in-1 Branch Connector stands out as an innovative component designed to streamline solar array installations while meeting the rigorous demands of modern photovoltaic (PV) systems. This advanced connector integrates cutting-edge engineering with user-friendly design, making it a critical asset for utility-scale solar farms, commercial installations, and residential projects.

This 4-in-1 branch connector is specifically engineered for 1500V DC solar applications, aligning with the industry shift toward higher voltage systems that maximize energy output and reduce balance-of-system (BOS) costs. Compatible with NSPV (National Solar PV) standards and MC (Multi-Contact) type connectors, it ensures seamless interoperability with leading PV module and inverter brands. The connector simplifies wiring by consolidating four individual cable connections into a single compact unit, reducing installation time and minimizing potential points of failure.

1. High Voltage Capacity
   Rated for 1500V DC, the connector supports high-voltage solar arrays, enabling longer string lengths and fewer combiner boxes. This translates to lower material costs and enhanced system efficiency.

2. Robust Construction
   Built to withstand harsh environmental conditions, the connector features UV-resistant, halogen-free insulation and a flame-retardant housing (compliant with IEC 62852 and UL 6703 standards). Its IP68-rated waterproof and dustproof design ensures reliable performance in extreme temperatures (-40°C to +120°C).

3. Plug-and-Play Design
   The MC-type plug utilizes a tool-free, snap-lock mechanism for quick and secure mating, reducing labor costs. Pre-assembled cables with crimped contacts minimize on-site errors.

4. 4-in-1 Branching
   By integrating four input cables into one output, the connector optimizes cable management, reduces clutter, and improves airflow around PV modules—critical for maintaining efficiency in densely packed solar arrays.

This connector is ideal for:

• Large-scale solar farms requiring high-density connections.

• Rooftop installations where space optimization is crucial.

• Floating solar projects demanding corrosion resistance.

• Retrofit upgrades to existing 1000V systems transitioning to 1500V architectures.

Certified to TüV, UL, and IEC standards, the connector prioritizes safety with features such as touch-proof contacts, reverse polarity protection, and arc-prevention design. Its double-insulated terminals and robust strain relief ensure long-term reliability.

• Voltage Rating: 1500V DC

• Current Rating: Up to 30A per branch

• Conductor Size: Compatible with 4–6 mm2 solar cables

• Contact Resistance: <0.5 mΩ

• Ingress Protection: IP68

• Operating Temperature: -40°C to +120°C

By combining high-voltage compatibility, rugged durability, and modular design, this 4-in-1 branch connector addresses the core challenges of modern solar installations: cost reduction, efficiency optimization, and future scalability. Its compliance with global standards ensures compatibility with international projects, while its ergonomic design empowers installers to work faster and safer.

For solar developers and EPC contractors, adopting this solution means investing in a product that not only meets today’s demands but also anticipates tomorrow’s advancements in renewable energy technology.
