CNC Double Table 3 in 1 Turret-Type Busbar Processing Machine close type ISO 9001 BT-C303C/BT-C503C/BT-C803C

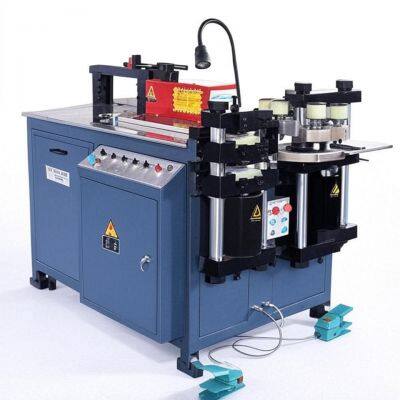

Closed-Type CNC Double Table Busbar Processing Machine  features punching, shearing, and bending workstations. These stations can operate simultaneously or sequentially, significantly reducing processing time and boosting production efficiency. The bending station utilizes Siemens PLC control (Germany). Its primary function is processing copper and aluminum busbars of various specifications. Simply select the required workstation to quickly and conveniently perform operations on copper/aluminum bars, including shearing, punching (round holes, elongated holes), horizontal/vertical bending, U-bending, embossing, flattening, twisting, and cable lug crimping.

Punching Unit:

1. Six-in-One Turret Structure: Precision-engineered from ductile iron forging, ensuring absolute concentricity of upper and lower dies.

2. Versatile Tooling: Holds 6 punch dies for 6 hole types. Accommodates dies of different sizes/shapes, eliminating frequent changeovers. CNC-machined die mounting holes ensure high precision and long service life.

3. Triple Positioning: Positioning pins, ruler, and optical guide.

4. Surface Protection: Ensures no surface marks on workpieces.

5. Custom Hole Capability: Utilizes specialized dies for non-standard holes (e.g., round, square, elliptical).

6. Dual Safety Controls: Foot pedal and push-button limit switches.

Shearing/Cutting Unit:

1. Precision Cut: Sharp blades with dual-column shear structure guarantee flat, clean cuts – no droop, burrs, or scrap.

2. Dual-Pressure System: Prevents material lifting at corners.

3. Dual Safety Controls: Foot pedal and push-button limit switches.

Bending Unit:

1. Dual Worktables: Enables simultaneous, non-interfering operation of all three units (shear, punch, bend).

2. Closed Bending Structure: Ensures uniformity during flat bending and embossing, enhancing repeat positioning accuracy for batch production.

3. Siemens PLC Control: Delivers high bending precision (±1° bend angle accuracy, ±0.5° repeatability).

   Multi-Function via Tooling: Change dies for horizontal bends, vertical bends, U-bends, embossing, flattening, twisting, and lug crimping. Features automatic bend angle control.

   Efficiency & Storage: System includes memory function for easy storage and recall of settings. Automatic stop timers per station enhance energy efficiency.

   Direct Input: Simply input height/length to produce parts (e.g., Z-bends).




   Machine parameters


   Closed-Type CNC Double Table Busbar Processing Machine	BT-C303C	BT-C503C	BT-C803C
   Nominal force (kn)	300	500	800
   Punching dia. range (mm)	φ4.3 - φ25	φ4.3 - φ30	φ4.3 - φ34
   Max. thickness (mm)	12	16	20
   Max. width (mm)	160	200	250
   Max. shearing thickness (mm)	12	16	20
   Max. shearing width (mm)	160	200	250
   Max. horizontal bending width (mm)	160	200	250
   Max. Horizontal bending thickness (mm)	12	16	20
   Max. vertical bending size (mm)	10 × 100	10 × 120	10 × 120
   Power (kw)	3 × 4KW	3 × 5.5KW	3 × 5.5KW
   Bending precision (degree)	±1°	±1°	±1°
   Repeat bending precision (degree)	±0.5°	±0.5°	±0.5°
   First table size (mm)	1750 × 1250	1920 × 1385	1920 × 1385
   Second table size (mm)	985 × 500	985 × 500	985 × 500
   Outside dimension (mm)	1780 × 1400 × 1300	1950 × 1560 × 1390	1950 × 1560 × 1450
   Container size (mm)	1870 × 1480 × 1520	2060 × 1660 × 1650	2060 × 1660 × 1650
   Total weight (kg)	1450	1800	2100

Certifications:

• CE Marking (EU Standards)

• ISO 9001 Certified

Packaging & Lead time

Wrapped with waterproof plastic film inside and wooden cases outside.

Within 3-15 days after payment.
