Home > Products > Solar Connector & cable > 2016 REOO Solar Connector MC3 Tyco Solar Connector With TUV/UL

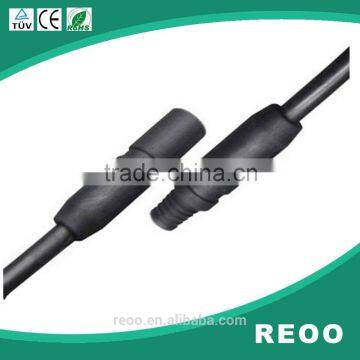

2016 REOO Solar Connector MC3 Tyco Solar Connector With TUV/UL
- Shanghai
- T/T
You May Like
-
2016 REOO Popular Sale Solar Crimping Tool for Solar Cable and Connectors
-
REOO IP67 Mc4 Cable Solar Connecor PV Solar Panel Extension Cable
-
MC4 Y Type Terminal PV Connector the Raw Material Optional
-
Solar Junction Box Mc4 Connector for PV Module Factory Price
-
REOO 2016 Solar Junction Connector MC3 T Branch Cable Connector
-
New High Quality MC4 Adapter PV Connectors for Solar Cells Panels
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-2 | Type | Adapter | |
| Application | Power | Gender | Other, Cathode and Anode |
Product Description
Solar power cable connector
The advantage of REOO Solar connector
1, PA raw material, Not PPO.
2, Ultrasonic hot melting , Most company use fixing clip.
3, Manufacturer price.
Item | RO-2 solar PV cable connector |
Compatible: | MC3 Solar connector |
Insulation material: | TPE/PA |
Rated current : | 25A |
Rated voltage: | 1000V |
Test voltage : | 6000V(50Hz,1Min) |
Contact material : | Copper Tin plated |
Contact resistance: | 5mΩ |
Degree of protection : | IP65 |
Safety class: | 2 |
Flame class: | UL94-V0 |
Insertion force : | ≤50N |
Withdrawal force : | ≥50N |
Ambient temperature range : | -40 degree to +90 degree |
Connector diameter : | 4mm |
Compatible cable cross sections : | solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : | 2.5-6.0mm2 AWG 14/12/10 |
Be used for: | Connecting solar PV cable |
characteristic | High insulation, Fast integration |
REOO Connector use PC raw material, It is top quality.
Male house | 100 pic /PE bag. 10 bag/carton, also 1000 Pin/carton |
Female house | 100 pic /PE bag. 10 bag/carton, also 1000 Pin/carton |
Measure | 380*290*470 mm/ carton |
Net weight | 34 kg / carton |
Gross weight | 35.5 kg / carton |
