MC4 compatible solar connector used for solar panel factory price
- Shanghai
- T/T
You May Like
-
Quality TUV IP67 MC4 Solar PV Panel Connector MC4 connector price
-
IP67 Waterproof MC4 T-Type Compatible Solar Connectors from REOO solar
-
Solar Panel with Frame and MC4 Connector
-
REOO China Y Type MC4 Solar Connector Manufacturer for Solar Inverter
-
1000Pairs /Lot TUV MC4 self release plug PV Connector For PV Junction Box&Solar Panel
-
Good reputation Solar PV Connector MC4 with TUV China supplier
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-1 | Type | MCX | |
| Application | Power | Gender | Other, Female and male |
Product Description

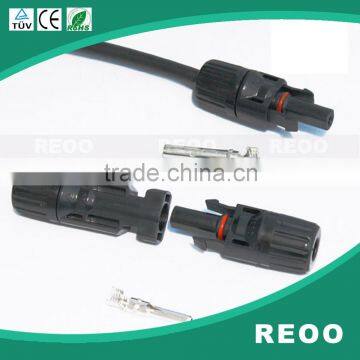

MC4 Solar power cable connector
The advantage of REOO Solar connector
1, Polycarbonate raw material, Not PPO.
2, Ultrasonic hot melting , Most company use fixing clip.
3, Manufacturer price.
PV solar connectors is a kind of pluggable connectors for PV module, with quick assembly, easy handling and high conductivity connection.
The PV solar connectors can easily be connected cables or junction boxes by using a multifunctional tool specifically developed for these connectors in usage with our junction boxes and cables, it’s a safety connection system for Photovoltaic .
Item | RO-1 solar cable connector |
Compatible: | MC4 solar connector |
Insulation material: | PC/PPO |
Rated current : | 30A |
Rated voltage: | 1500V |
Test voltage : | 6000V(50Hz,1Min) |
Contact material : | Copper Tin plated |
Contact resistance: | 5mΩ |
Degree of protection : | IP67 |
Safety class: | 2 |
Flame class: | UL94-V0 |
Insertion force : | ≤50N |
Withdrawal force : | ≥50N |
Ambient temperature range : | -40 degree to +90 degree |
Connector diameter : | 4mm |
Compatible cable cross sections : | solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : | 2.5-6.0mm2 AWG 14/12/10 |
Be used for: | Connecting PV cable |
characteristic | High insulation,Big tension,Fast integration |
REOO Connector use PC raw material, It is top quality.
Package
Male house | 100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton |
Female house | 100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton |
Measure | 480*380*360 mm/carton |
Net weight | 34 kg / carton |
Gross weight | 35.5 kg / carton |
