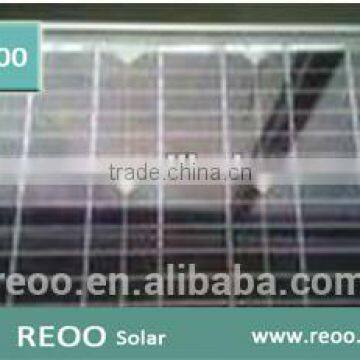

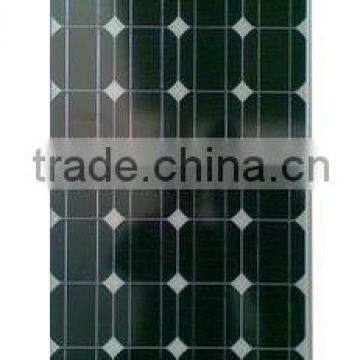

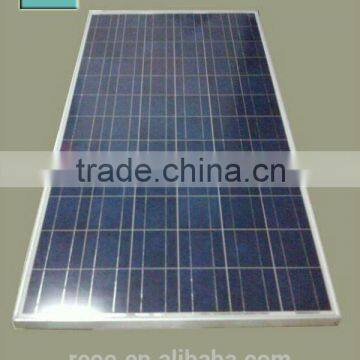

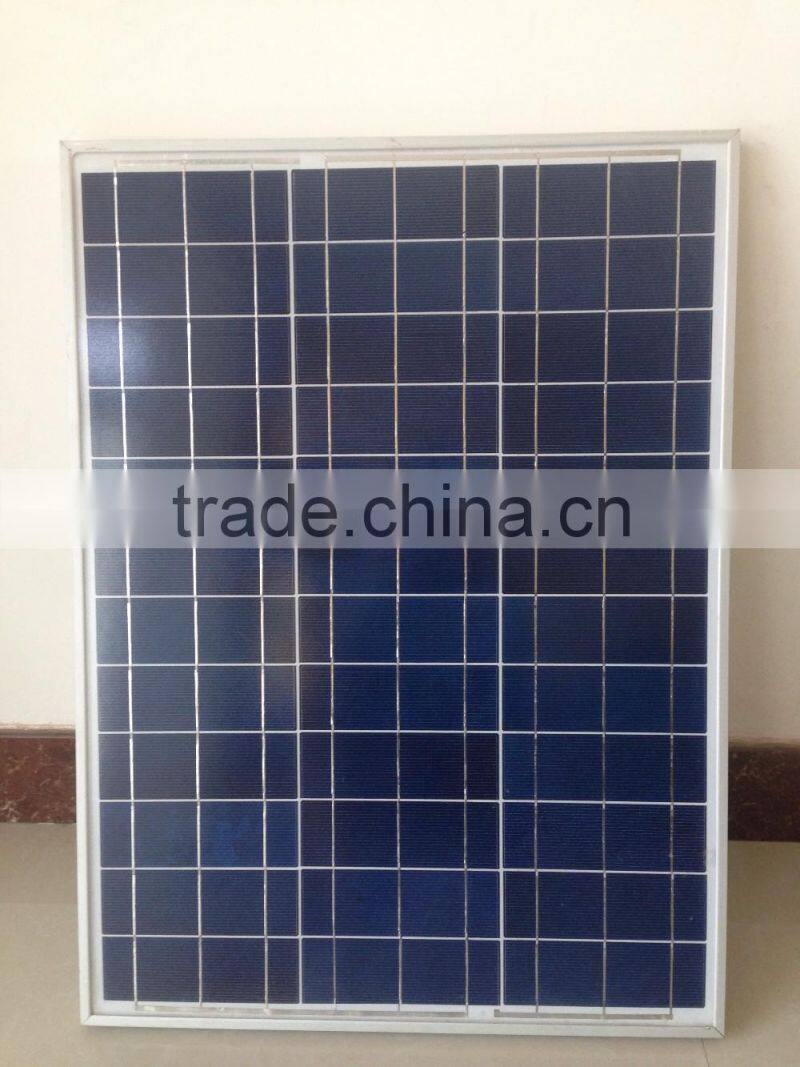

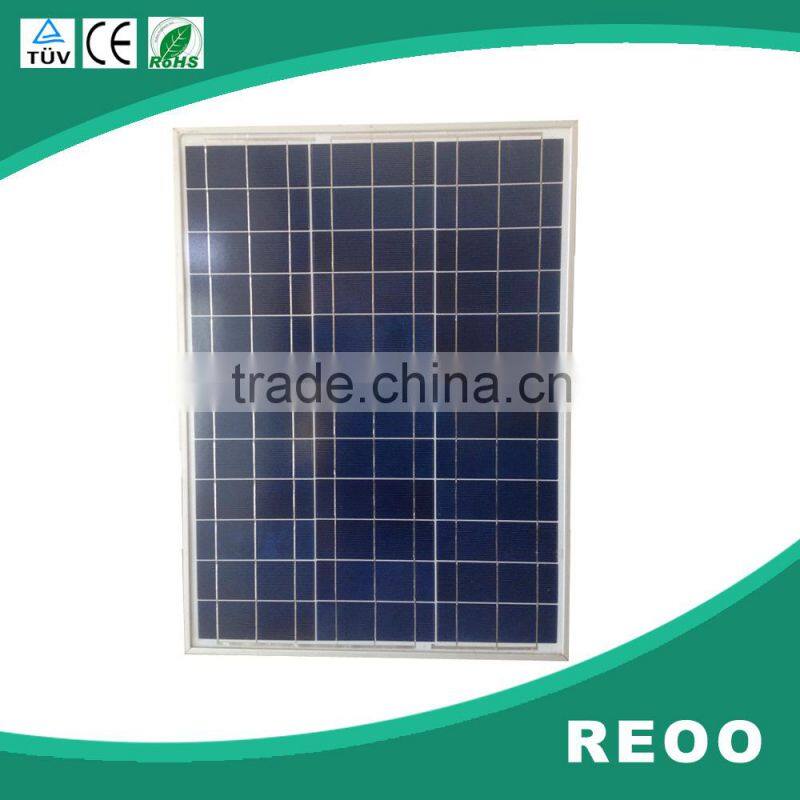

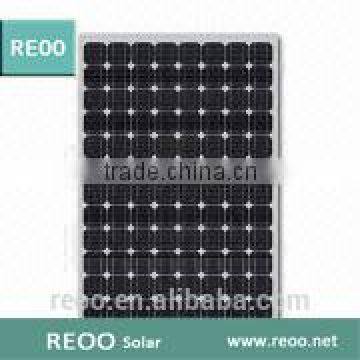

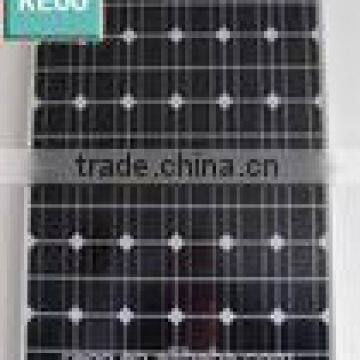

REOO Solar Panel Solar Cell Small Solar Moudle for Solar Photovoltaic System

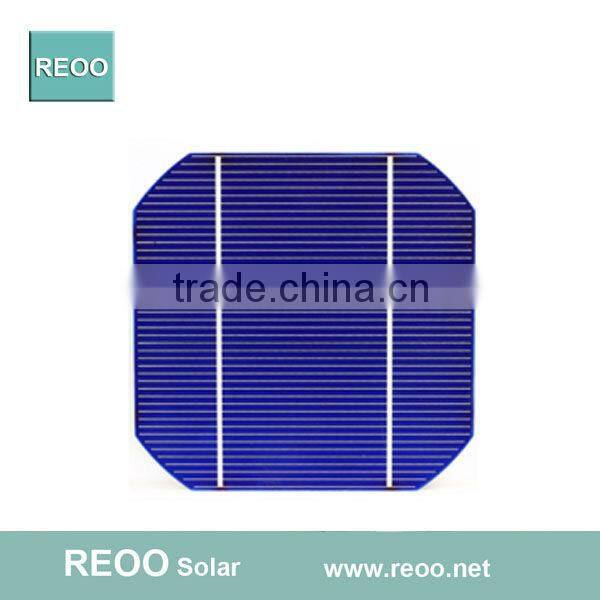

Solar Cell                    mono-crystalline 125*125mm

 Frame                          Anodized aluminium

 Weight                                1kg

Dimension                         246*214*25mm

Module Type                                      RO 005M-12

Nominal peak power(Wp)                               5W

Nominal voltage(Vmp)                                 16.8V

Nominal current(Imp)                                  10.3A

Open circuit voltage(Voc)                               21.0V

Short circuit current(Isc)                                0.34A

Module efficiency                                      10%

Operating Temperature                               -40^oC to +85^oC

Maximum System Voltage                             1000V DC

Product Features

1 Designed according to and complying with all requirements in IEC 61730 and IEC 61215 ed2(certified by TUV Rheninland);

2 White tempered glass,EVA ,weather proof substrate fim and anodized aluminium frame provide adequate protection against various environmental conditions

3 All backed by a 25 year limited power warranty(≥80%)and 2 year workmanship warranty

4  Customization on request

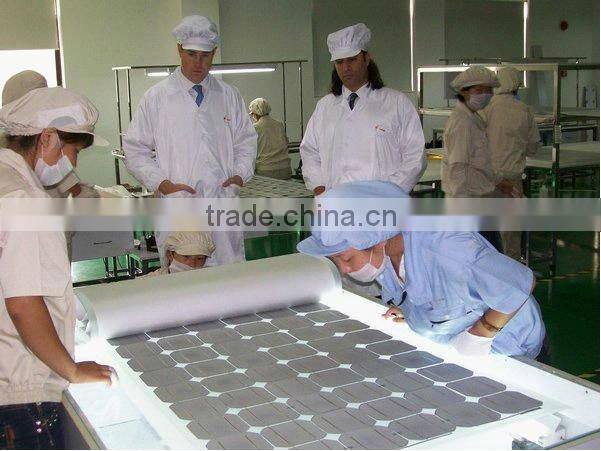

5  Cells are 100% visual inspected and sorted according to electric characters against mismatching

6 Visual inspection,performance measurement and dielectric strength tests on every product

7 The junction box and connectors with IP 65 protection degree provide convenient reliable electric connection;The incorporated schottky bypass diodes protect the module from hot spot damages
