Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-1 | Type | Adapter | |
| Application | Power | Gender | Other, Female and Male |
Product Description

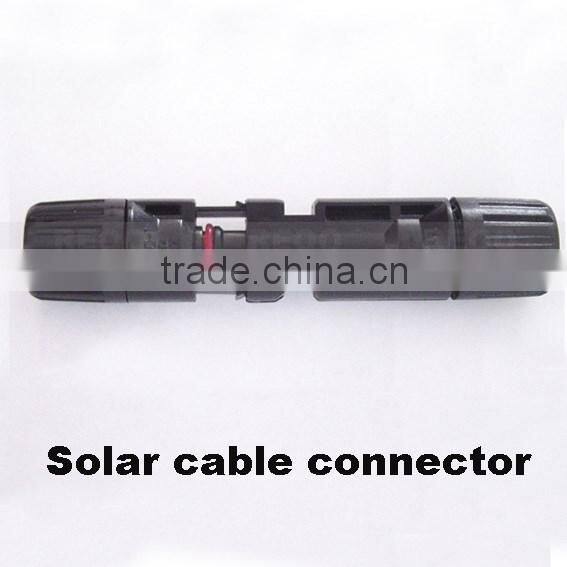

Solar power cable connector

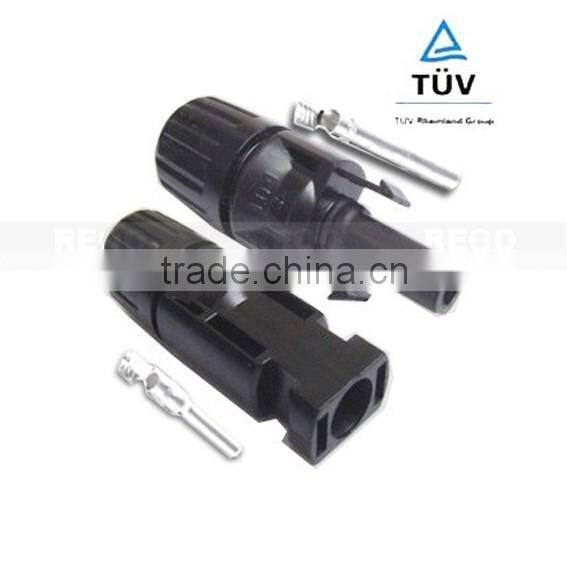

MC4 Solar power connector
Item | RO-1 solar cable connector |
Compatible: | MC4 solar connector |
Insulation material: | PC/TPE/PA |
Rated current : | 30A |
Rated voltage: | 1500V |
Test voltage : | 6000V(50Hz,1Min) |
Contact material : | Copper Tin plated |
Contact resistance: | 5mΩ |
Degree of protection : | IP67 |
Safety class: | 2 |
Flame class: | UL94-V0 |
Insertion force : | ≤50N |
Withdrawal force : | ≥50N |
Ambient temperature range : | -40 degree to +90 degree |
Connector diameter : | 4mm |
Compatible cable cross sections : | solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : | 2.5-6.0mm2 AWG 14/12/10 |
Be used for: | Connecting PV cable |
characteristic | High insulation,Big tension,Fast integration |
REOO Connector use PC raw material, It is top quality.
Package
Male house | 100 pcs / PE bag. 10 bag / carton, also 1000 Pin |
Female house | 100 pcs / PE bag. 10 bag / carton, also 1000 Pin |
Measure | 380*290*470 mm/carton |
Net weight | 34 kg / carton |
Gross weight | 35.5 kg / carton |
Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
We can supply technical documents for apply TUV certificated. It is free.
