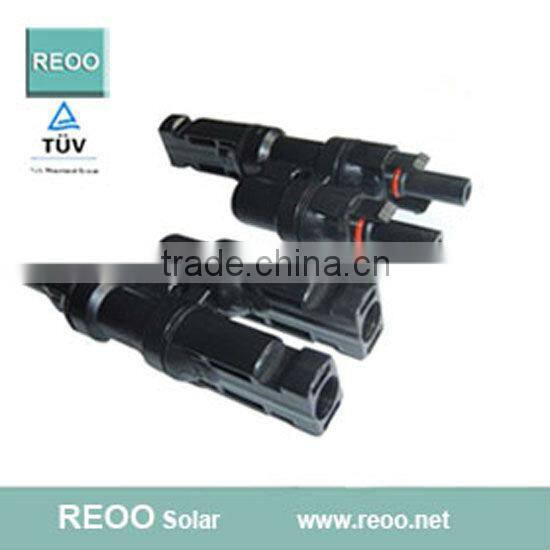

Quality TUV IP67 MC4 Solar PV Panel Connector MC4 Connector Price

FOB Price

US$ 2.88 - 4.45 / Pair

100 Pairs(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

MC4 Solar power cable connector

The advantage of REOO Solar connector

1, raw material PPO.

2, Ultrasonic hot melting , Most company use fixing clip.

3, Manufacturer price.

Raw material	Used for	Price	Characteristic
PPO PX9406P-7001	Junction box	Lower	Most of company use it for junction box.
PPO 540Z	Junction box	Lower	Lower price
PPO V0150B	Junction box	Middle	RTI higher than PX9406P
PPO 644Z	Junction box	Middle	Good quality for junction box
PA66 FR7025	Connector nut	Middle	Most of company use it for connector
PA66 FR370	Connector nut	Middle	Most of company use it for connector
PC EXL9330	Connector house	Expensive	Top quality.

Item	RO-1 T Solar connector
Compatible:	MC4 solar connector
Insulation material:	PPO
Rated current :	30A
Rated voltage:	1500V
Test voltage :	6000V(50Hz,1Min)
Contact material :	Copper Tin plated
Contact resistance:	5mΩ
Degree of protection :	IP67
Safety class:	2
Flame class:	UL94-V0
Insertion force :	≤50N
Withdrawal force :	≥50N
Ambient temperature range :	-40 degree to +90 degree
Connector diameter :	4mm
Compatible cable cross sections :	solar cable 4.0mm2 and 6.0 mm2

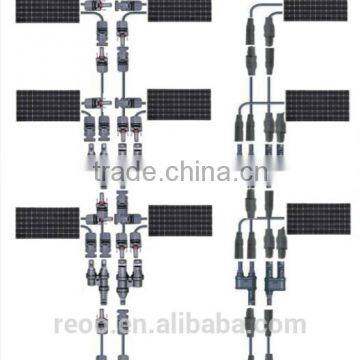

Be used for:	Parallel connecting solar panel
Suitble cable :	2.5-6.0mm2 AWG 14/12/10
characteristic	High insulation, Fast integration

REOO Connector use PC raw material, It is top quality.

Package
