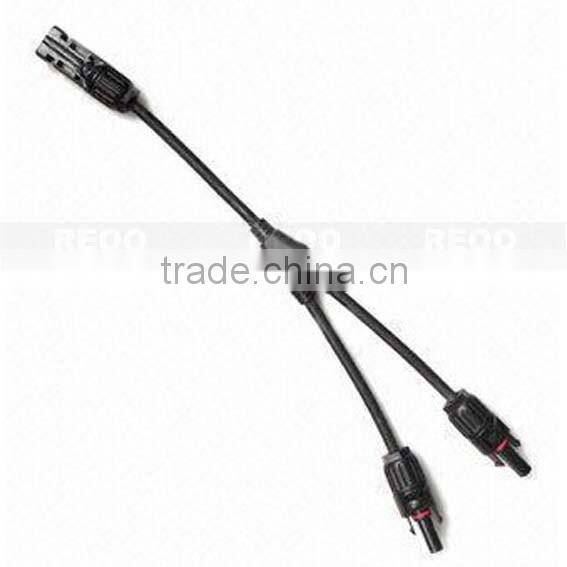

REOO Y Branch Solar Connector M4 Cable Connector
- Shanghai
You May Like
-
MC4 Compatible Solar Connector Used for Solar Panel Factory Price
-
Quality TUV IP67 MC4 Solar PV Panel Connector MC4 Connector Price
-
IP67 Waterproof MC4 T-Type Compatible Solar Connectors From REOO Solar
-
Solar Panel With Frame and MC4 Connector
-
REOO China Y Type MC4 Solar Connector Manufacturer for Solar Inverter
-
1000Pairs /Lot TUV MC4 Self Release Plug PV Connector For PV Junction Box&Solar Panel
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-1Y | Type | Adapter | |
| Application | Power | Gender | Other, Female and Male |
Product Description
MC4 Solar power cable connector
The advantage of REOO Solar connector
1, PA raw material, Not PPO.
2, Ultrasonic hot melting , Most company use fixing clip.
3, Manufacturer price.
Item | RO-1 Y Solar connector |
Compatible: | MC4 solar connector |
Insulation material: | PC |
Rated current : | 30A |
Rated voltage: | 1500V |
Test voltage : | 6000V(50Hz,1Min) |
Contact material : | Copper Tin plated |
Contact resistance: | 5mΩ |
Degree of protection : | IP67 |
Safety class: | 2 |
Flame class: | UL94-V0 |
Insertion force : | ≤50N |
Withdrawal force : | ≥50N |
Ambient temperature range : | -40 degree to +90 degree |
Connector diameter : | 4mm |
Compatible cable cross sections : | solar cable 4.0mm2 and 6.0 mm2 |
Be used for: | Parallel connecting solar panel |
Suitble cable : | 2.5-6.0mm2 AWG 14/12/10 |
characteristic | High insulation, Fast integration |
REOO Connector use PC raw material, It is top quality.
Package
MC4 Y | 200 pairs /carton box |
Measure | 480mm x 380mm x 360mm |
Net weight | 25 kg / carton |
Gross weight | 26 kg / carton |
