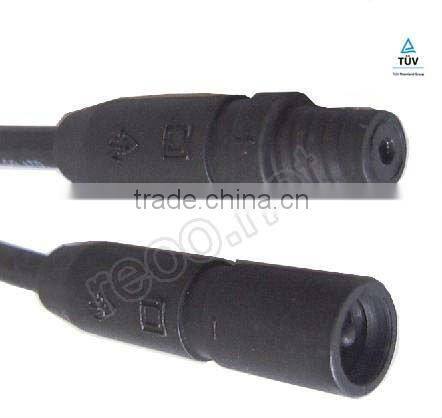

PA , TUV Approved Waterproof Solar MC3 Connector
- Shanghai
You May Like
-
MC4 P Solar Panel Cable Connector Male Female Electrical Waterproof
-
Fast Connecting With Tools PV Solar Power pv MC3 Connector
-
MC4 T Type Wire Connector Crimping MC4 Connectors
-
REOO MC4 Connector Assembly Y Branch MC4 Connector for Solar Cable
-
REOO 30A Male Female MC4 PV Wire Solar Cable Connector
-
MC4 Connector TUV Waterproof IP67 for Solar Panel Cable T Branch Connector
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-2 | Type | Adapter | |
| Application | Power | Gender | Other, Cathode and Anode |
Product Description

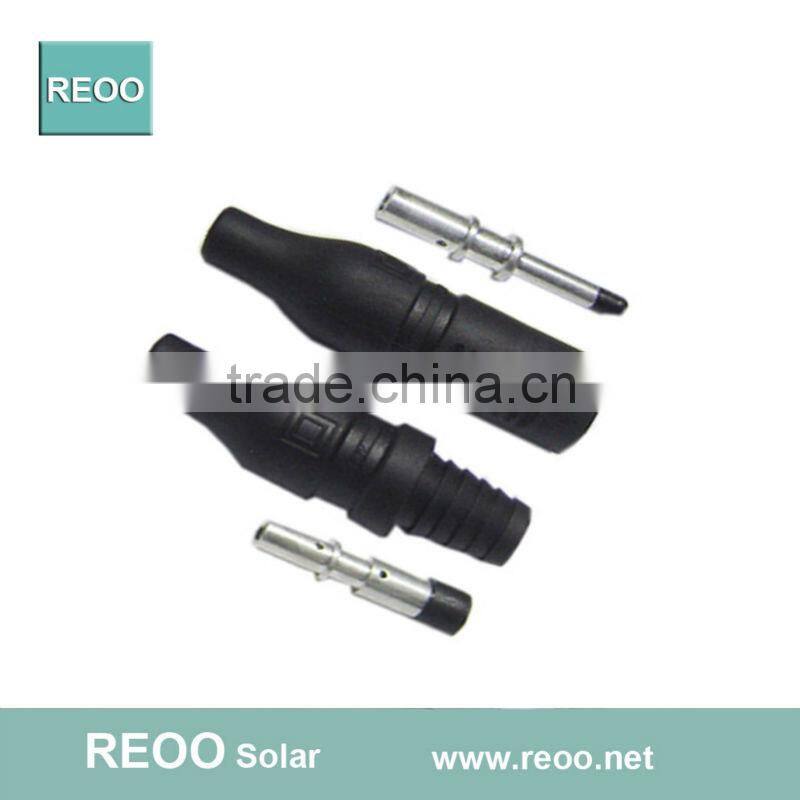

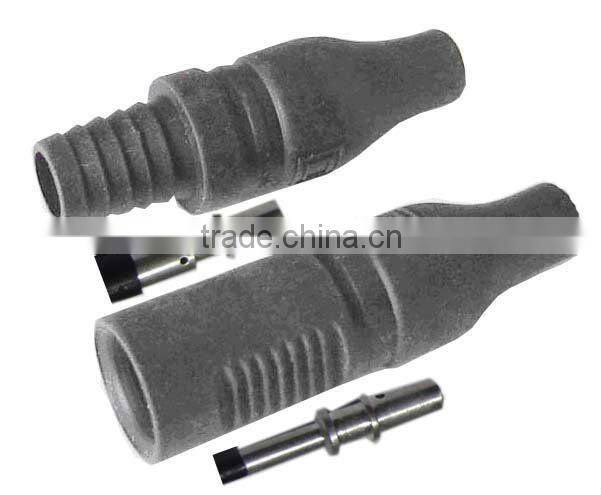

Solar power cable connector
The advantage of REOO Solar connector
1, PA raw material, Not PPO.
2, Ultrasonic hot melting , Most company use fixing clip.
3, Manufacturer price.

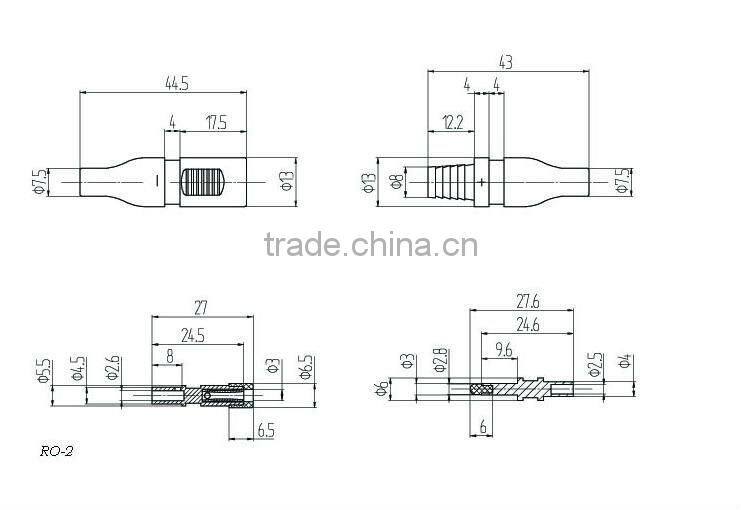

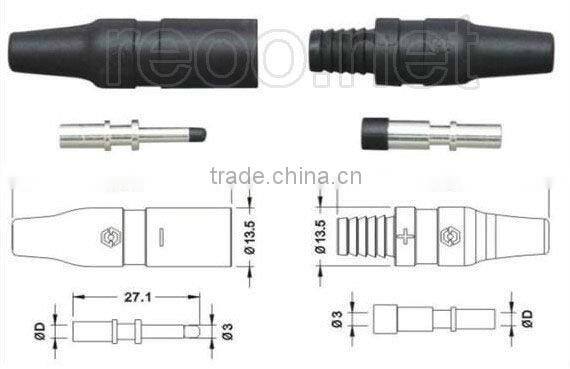

Item | RO-2 solar PV cable connector |
Compatible | MC3 Solar connector |
Insulation material | PA |
Rated current | 25A |
Rated voltage | 1000V |
Test voltage | 6000V(50Hz,1Min) |
Contact material | Copper Tin plated |
Contact resistance | 3mΩ |
Degree of protection | IP65 |
Safety class | 2 |
Flame class | UL94-V0 |
Insertion force | ≤50N |
Withdrawal force | ≥300N |
Ambient temperature range | -40 degree to +85 degree |
Connector diameter | 4mm |
Compatible cable cross sections | solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable | 2.5-6.0mm2 AWG 14/12/10 |
Be used for | Connecting solar PV cable |
Characteristic | High insulation,fast integration |
| Package size per batch: | 48X38X33 cm |
| Gross weight per batch: | 35.5 KG |
| Package Type: | Male house 100 pcs / PE bag. 10 bag / carton, also 1000 Pin Female house 100 pcs / PE bag. 10 bag / carton, also 1000 Pin |

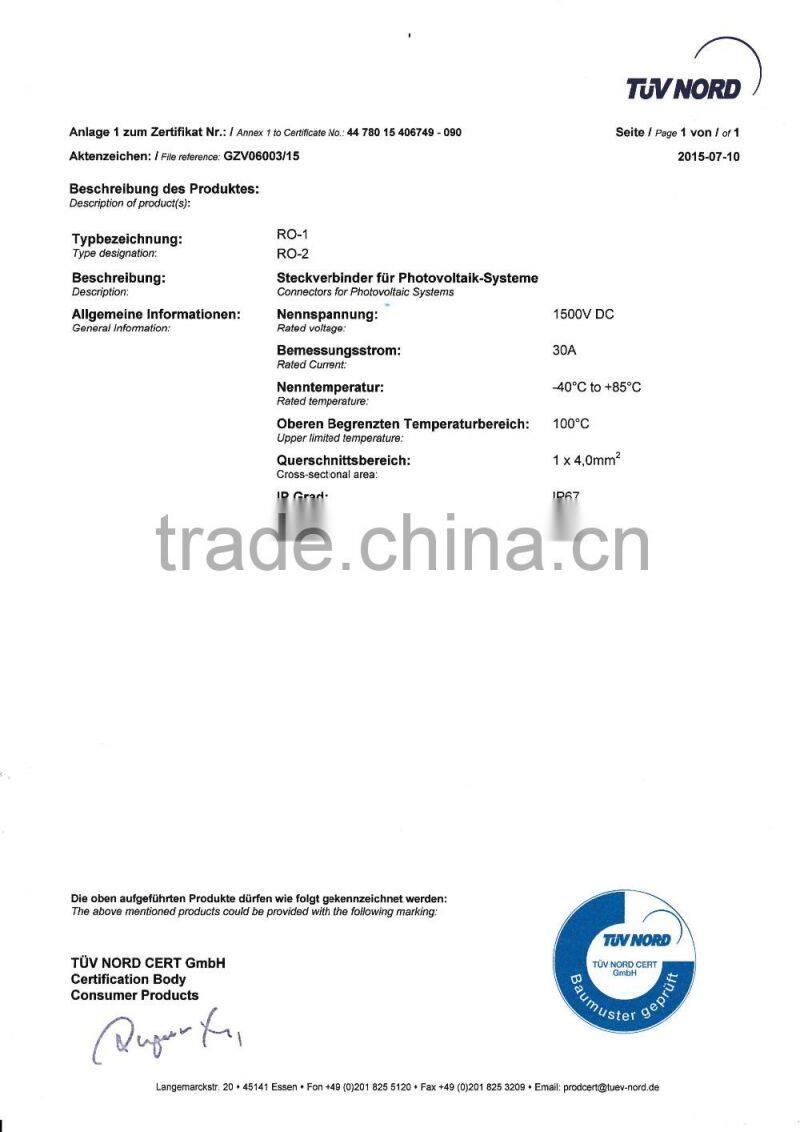

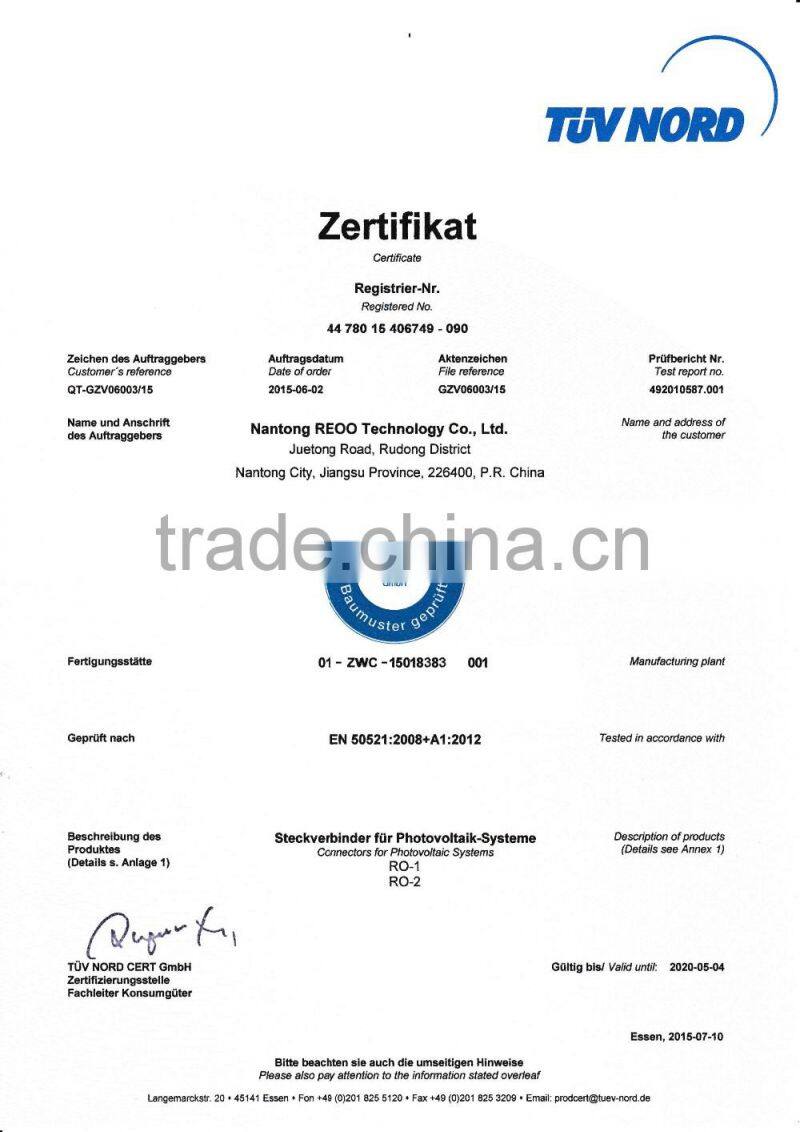

TUV Register No.: 44 780 15 406749 - 090
REOO Technology Co.,Ltd., is expert at a wide range of solar panel production lines, solar panel connectors, solar panel cables connectors as well as solar power system. We provide one package service, including design, producing, export, site installations and technical guidance and after-sale service as well.
Our factory is located in Nantong, Jiangsu province of China. It is 2 hours to Shanghai by vehicle. REOO together with SUNTECH, HANWA SOLAR, and QS SOLAR bring the technologic innovation superiority of the industrial cluster into full play.
Our senior technicians are familiar with ISO quality management system, and have strong sense of continuous improvement and responsibility. Our products enjoy competitive price, and have a ready market in USA, South Amercian, Europe, Australia, UK, Spain, Korea, Japan, Malaysia, India, Bangladesh, Vietnam and so on.
Please feel free to contact us if you are looking for a trustworthy source of solar panel machines and accessories. We take superior technical support and customer service as our integral parts of our offering. Any of your enquiries will be highly concerned and will be dealt with immediately. Your satisfaction of our products and services will be guaranteed.
